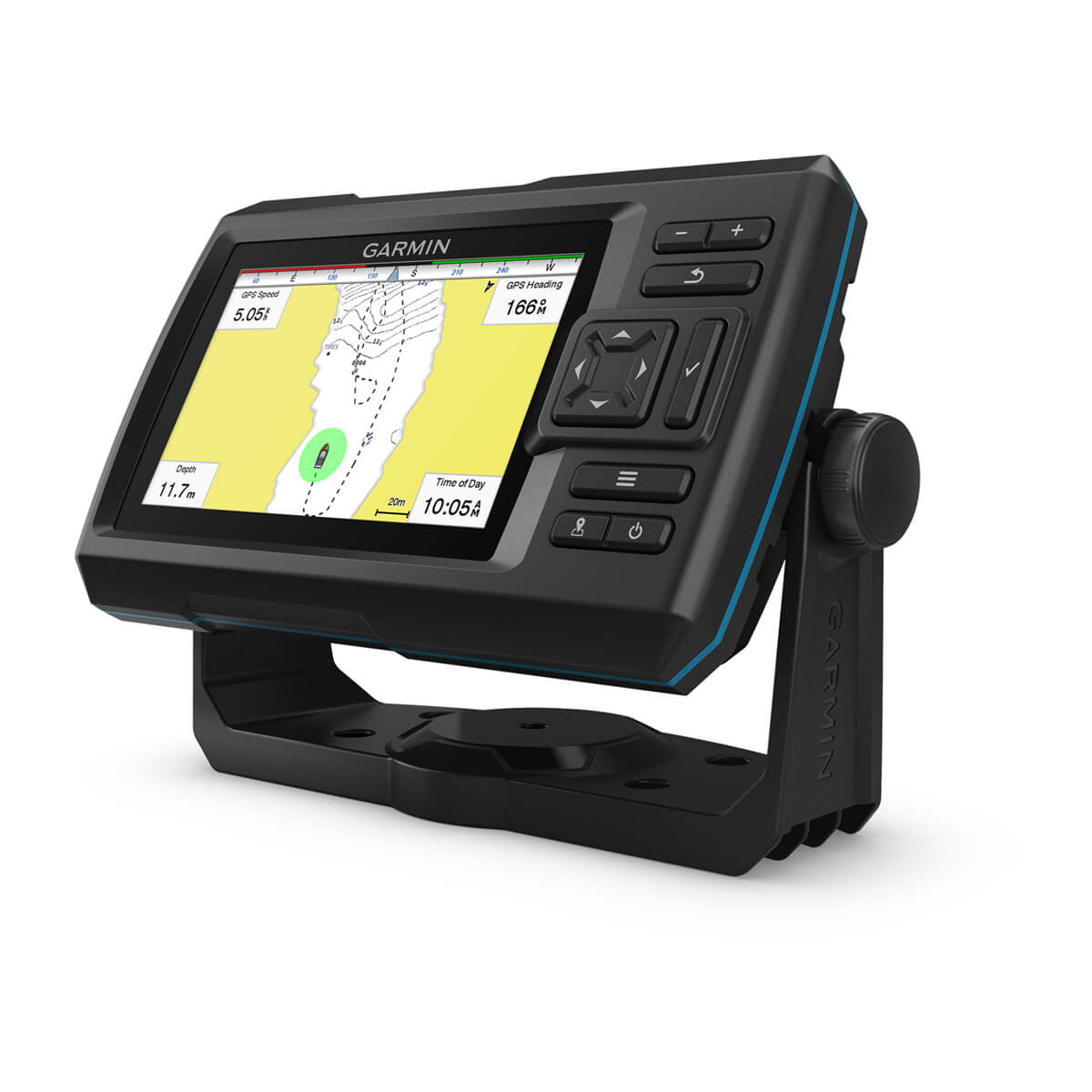

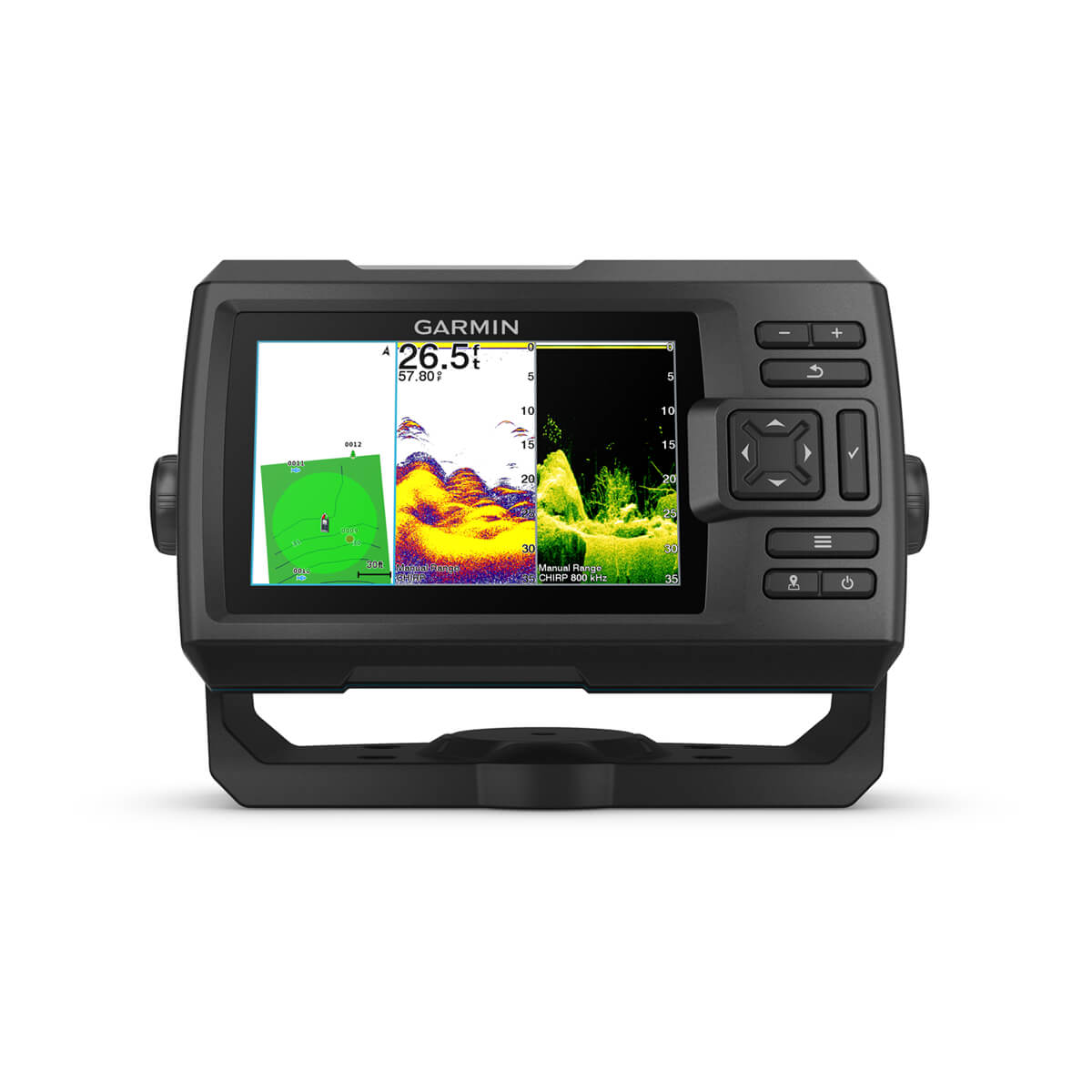

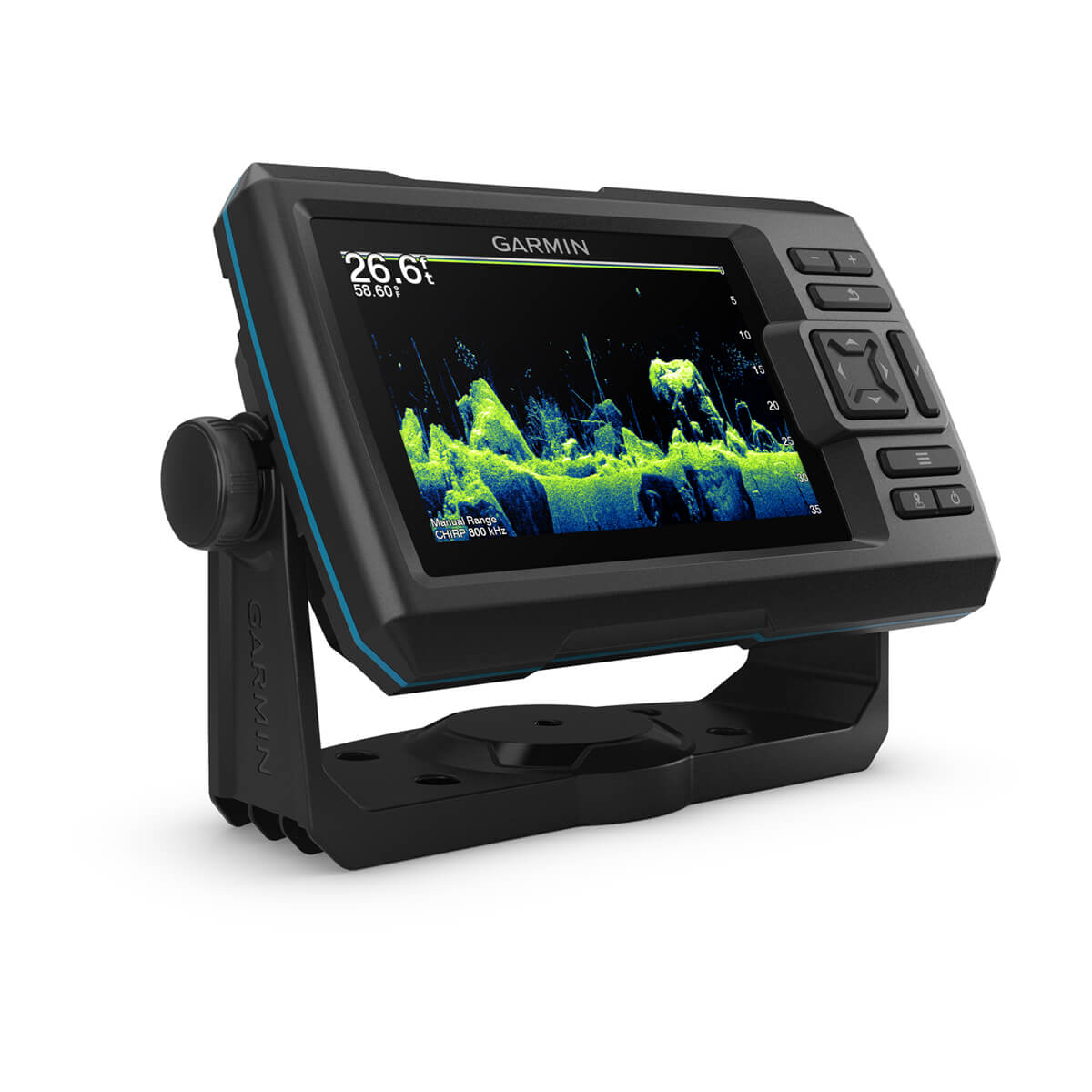

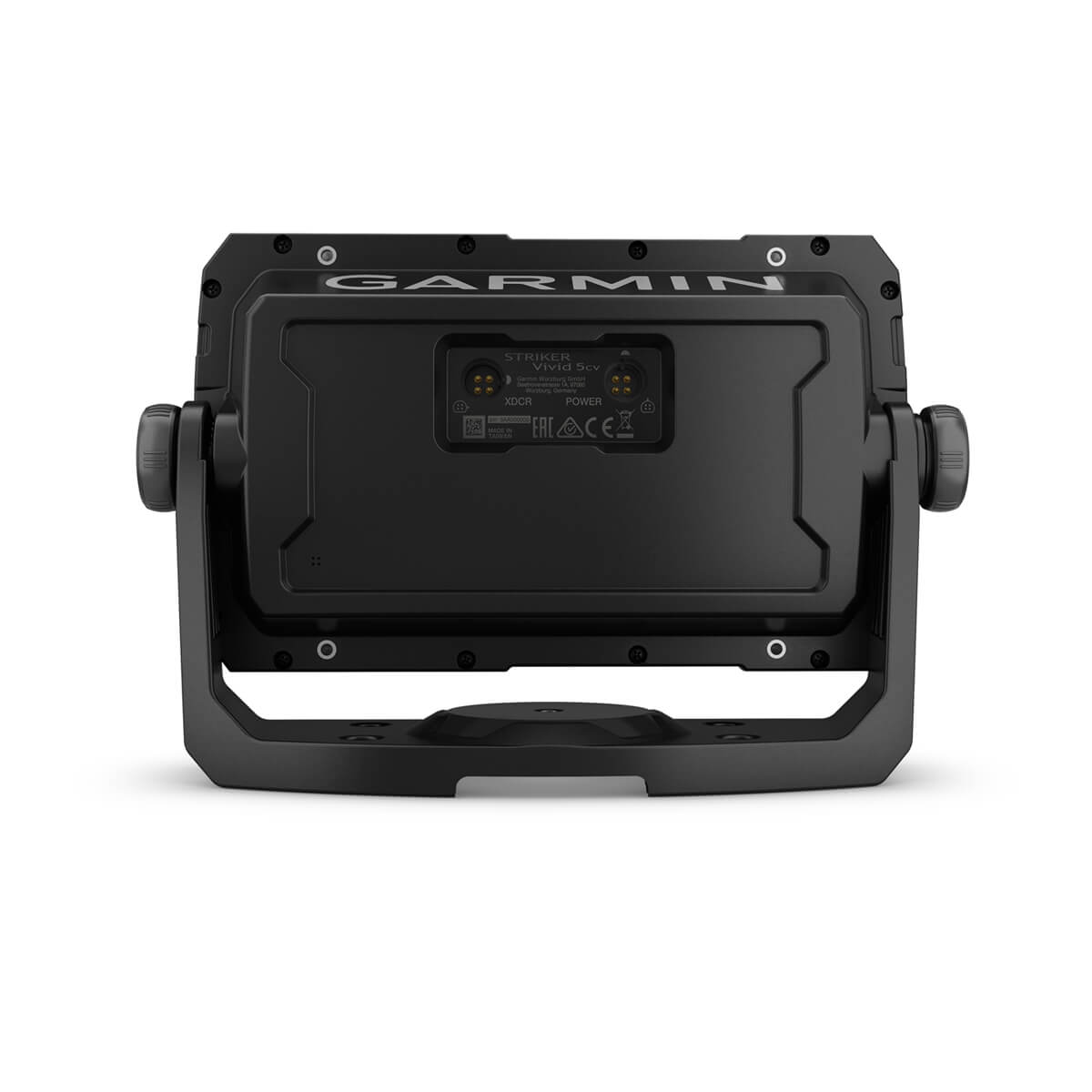

Garmin STRIKER Vivid 5cv Fishfinder with GT20-TM Transducer

The Garmin STRIKER Vivid 5cv is a 5-inch fishfinder built for clear sonar and simple GPS marking. This kit includes the GT20-TM transducer, so you get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar without buying the transducer separately.

Pick from seven vivid sonar color palettes to make fish and structure easier to read. Built-in GPS lets you mark waypoints and find your way back to a spot. Garmin Quickdraw Contours lets you draw your own maps with 1-foot contours and store up to 2 million acres of that user-made coverage. This unit does not include detailed coastal or inland chart cards. It is a fishfinder with GPS and Quickdraw, not a full chartplotter.

On land, built-in Wi-Fi pairs with the ActiveCaptain app on a compatible phone so you can transfer waypoints, get software update notices, and tap into the Quickdraw Community. The tilt/swivel mount plus transom and trolling-motor hardware ship in the box.

See it in action

What you get

• 5.0" diag WVGA color display (800 x 480)
• CHIRP traditional sonar + CHIRP ClearVü with included GT20-TM
• Seven vivid sonar color options
• Built-in GPS with waypoint marking (up to 5,000 waypoints)
• Garmin Quickdraw Contours (user-generated maps, 1-foot contours)
• Wi-Fi for ActiveCaptain (waypoints, updates, Quickdraw Community)
• IPX7 water rating
• Tilt/swivel mount, power/data cable, transducer, hardware

Good to know

• cv vs sv: This 5cv includes ClearVü. It does not include SideVü. For SideVü, look at STRIKER Vivid 7sv or 9sv.
• Charts: No built-in Navionics or Garmin coastal charts. Use Quickdraw for your own contours, or step up to an ECHOMAP if you need full chartplotting.
• Power: 12–20 Vdc input. 500 W RMS transmit power with the included transducer setup.

Specs

• Display: 5.0" diag, 800 x 480
• Display area: about 2.6" x 4.3" (6.5 x 10.8 cm)
• Weight: about 1.0 lb (450 g)
• Water rating: IPX7
• Traditional frequencies: 50/77/200 kHz CHIRP (mid and high)
• ClearVü frequencies: 260/455/800 kHz
• Transmit power: 500 W (RMS)
• Waypoints: 5,000 · Track points: 50,000 · Tracks: 50 · Routes: 100
• Transducer port: 1 x 4-pin
• Included transducer: GT20-TM
• Garmin part number: 010-02551-00
• UPC: 753759268312

In the box

• STRIKER Vivid 5cv fishfinder
• GT20-TM transducer
• Power/data cable
• Tilt/swivel mount
• Hardware
• Documentation
