Shadow-Caster Eagle Ray Light Bar

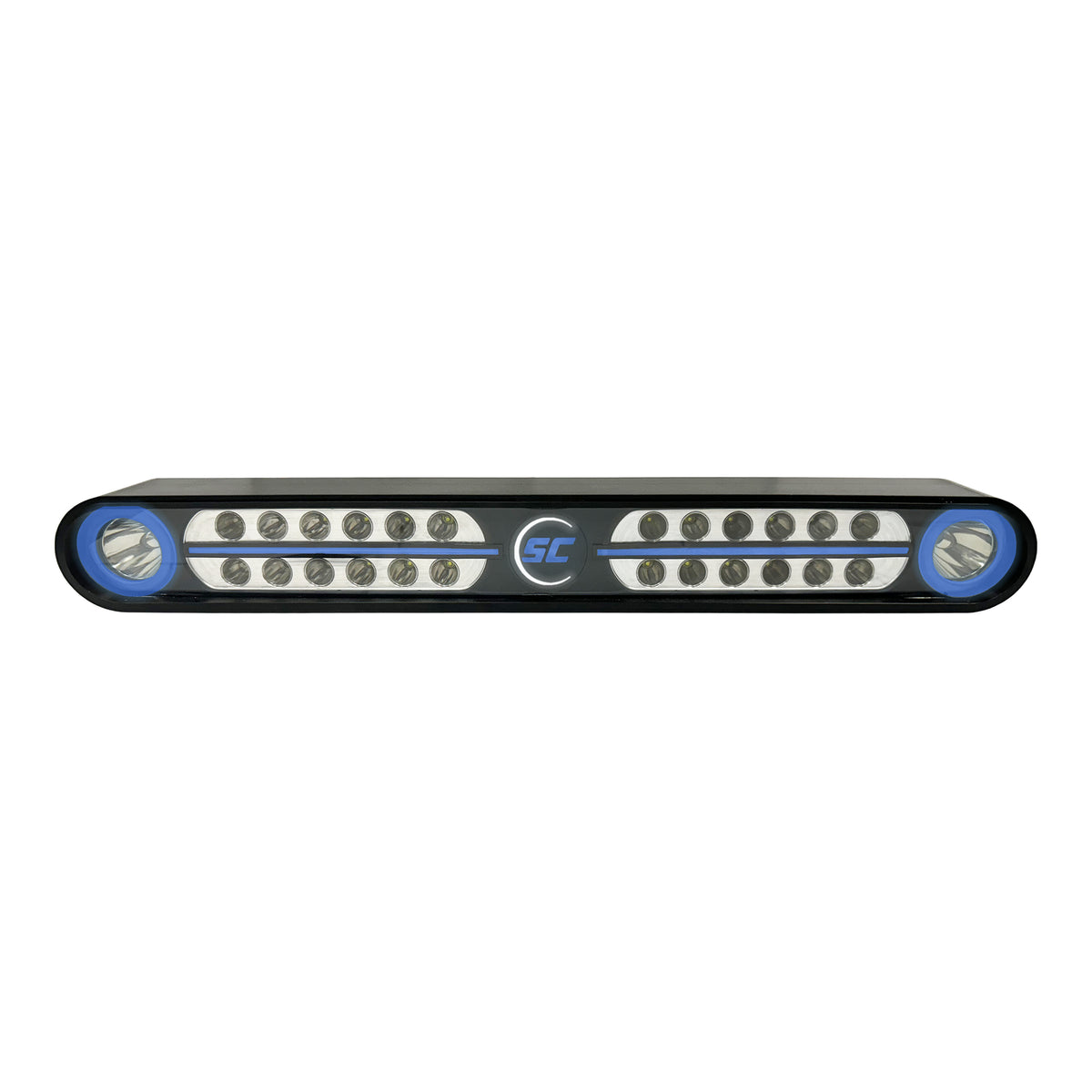

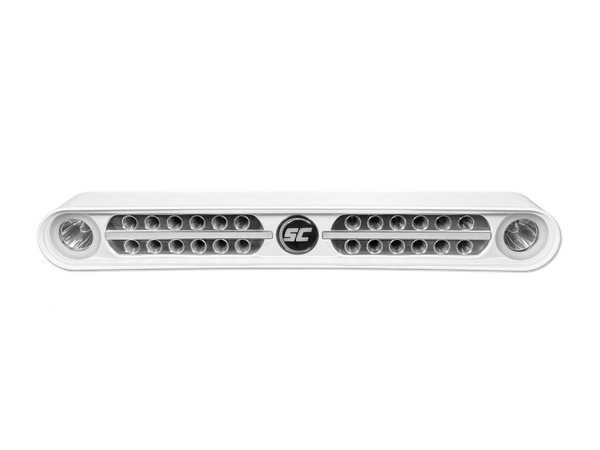

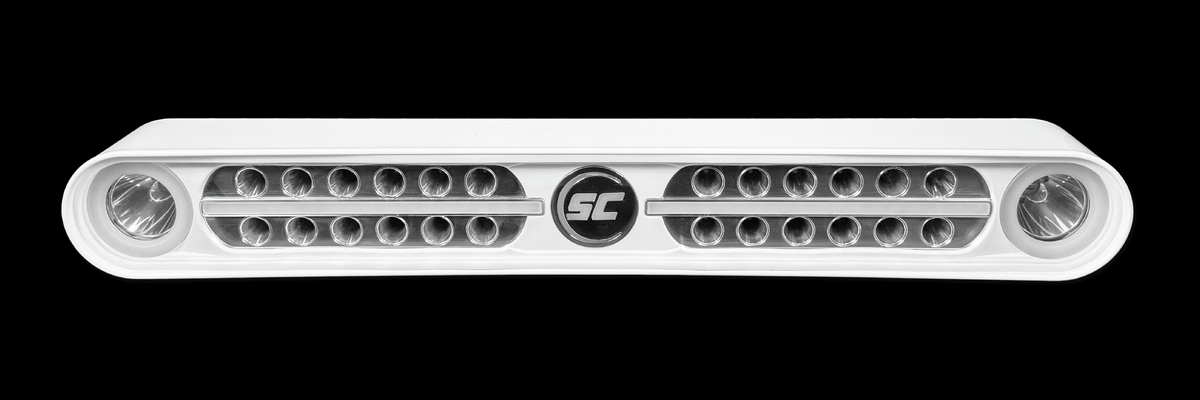

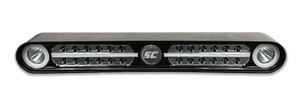

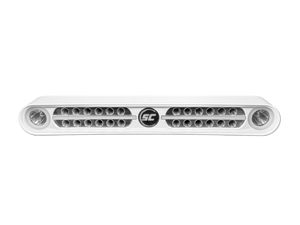

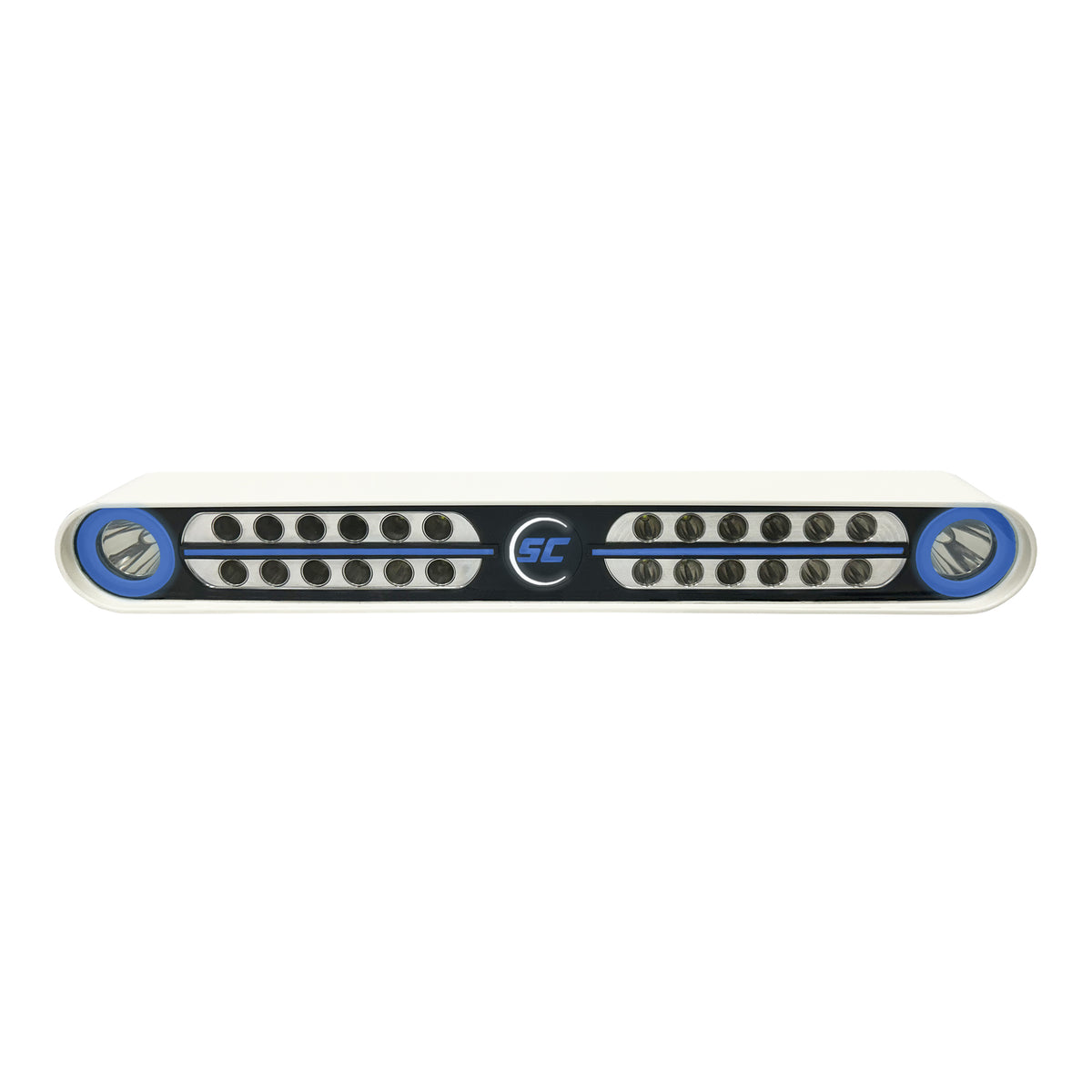

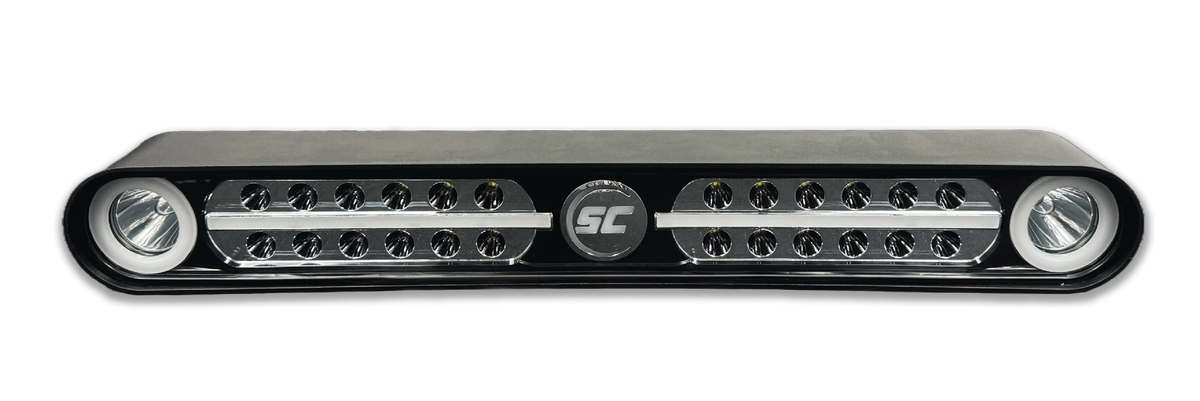

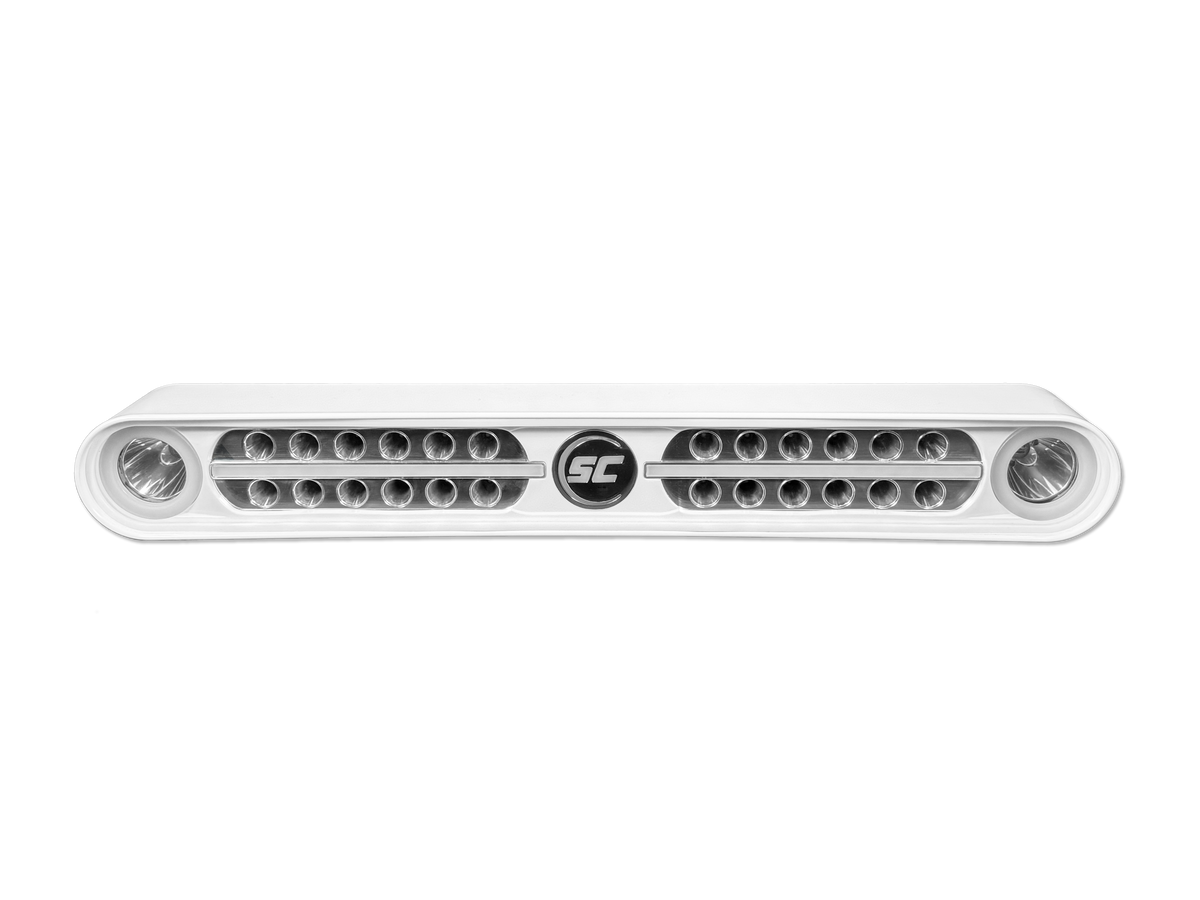

Eagle Ray combines laser-driven focused white beams with a wide 60° LED flood array in one billet aluminum light bar. Site rating: 20,000 lumens, 10-30 V, up to 200 W, about 16.5 A at 12 V. Size about 2.5" H x 20" W x 5.4" D. Borosilicate glass window. White or black housing.

Flood brightness and laser beam angle (about 5° to 100°) adjust from push buttons, rocker switch, or Shadow-Caster Light Commander on NMEA 2000. On the Light Commander the bar shows as separate flood and laser devices so you can save night scenes independently.

• Output: 20,000 lumens (manufacturer)
• Flood: 24 white LEDs, 60° beam, adjustable brightness

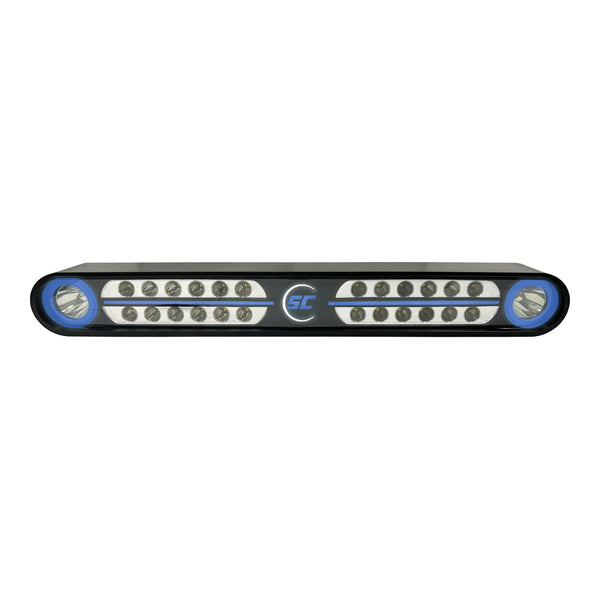

• Laser: adjustable beam angle, blue halo power indicator
• Remote power trigger simplifies high-current switching
