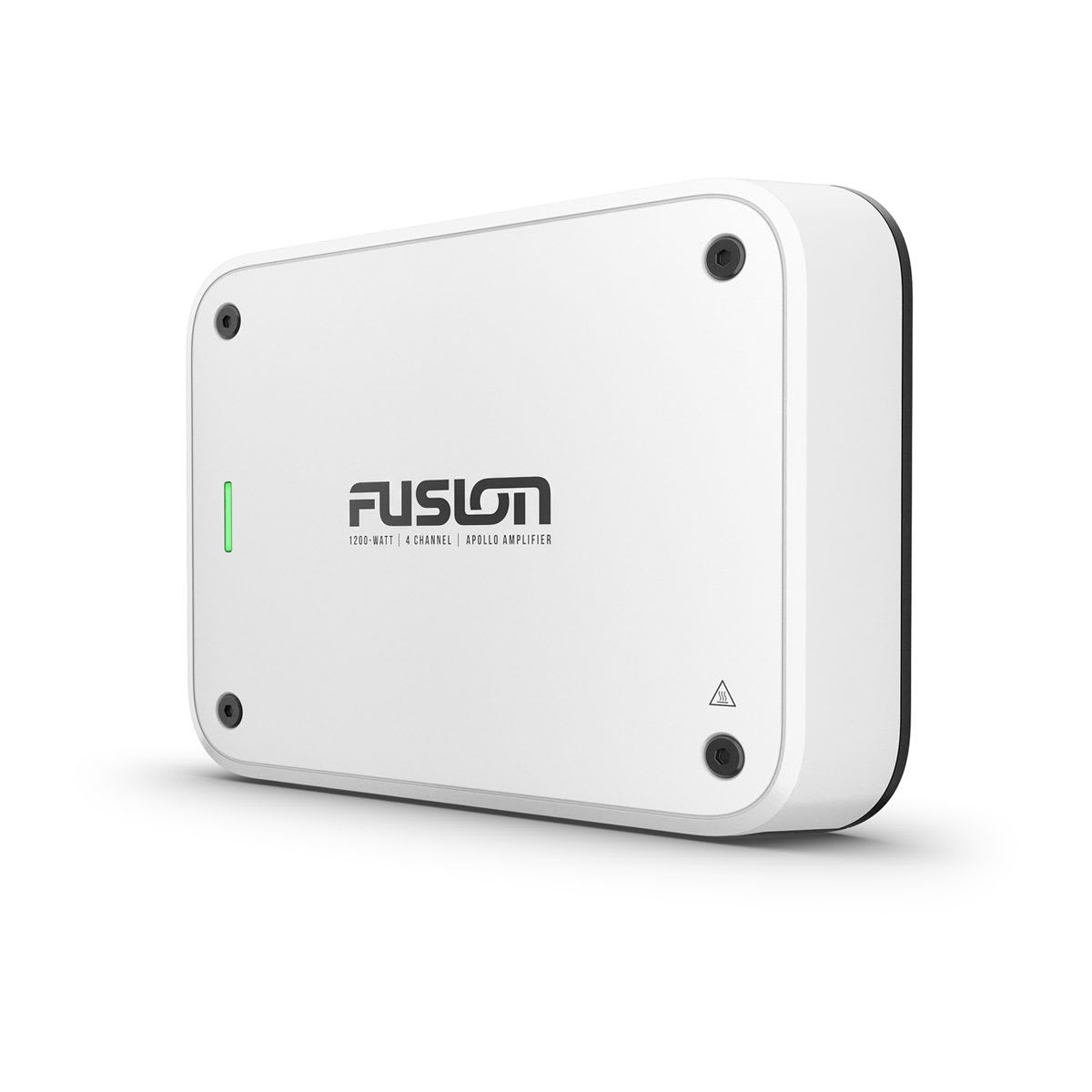

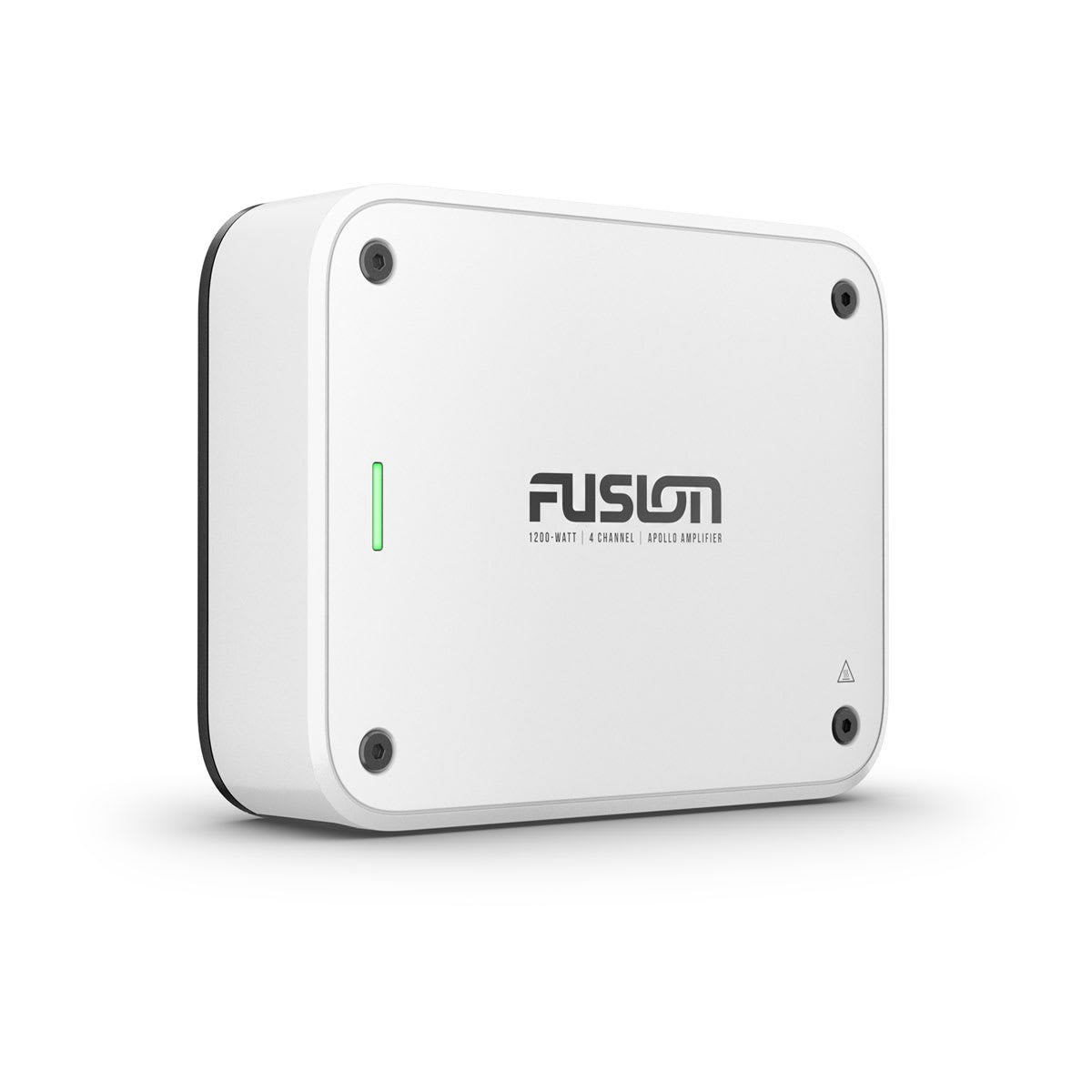

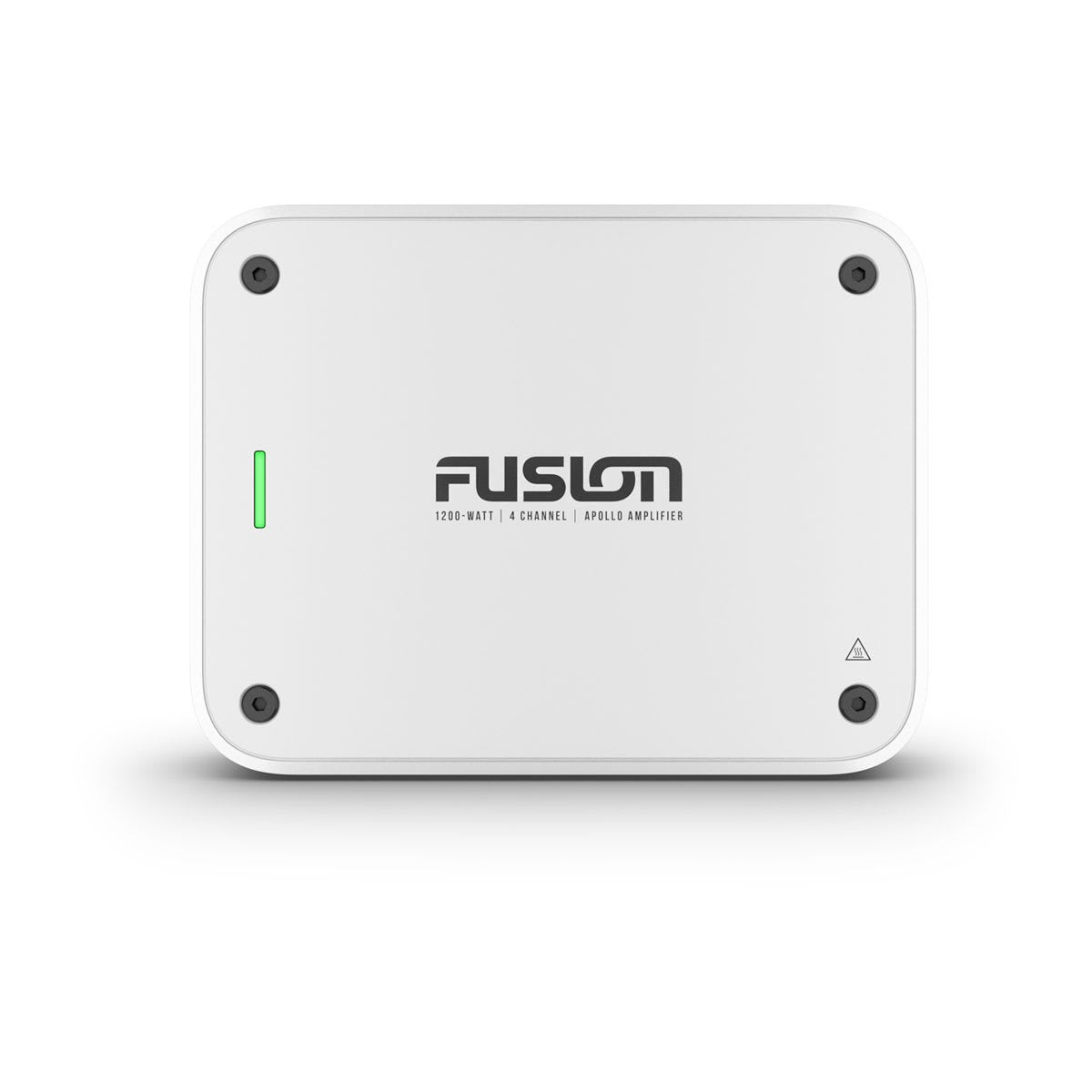

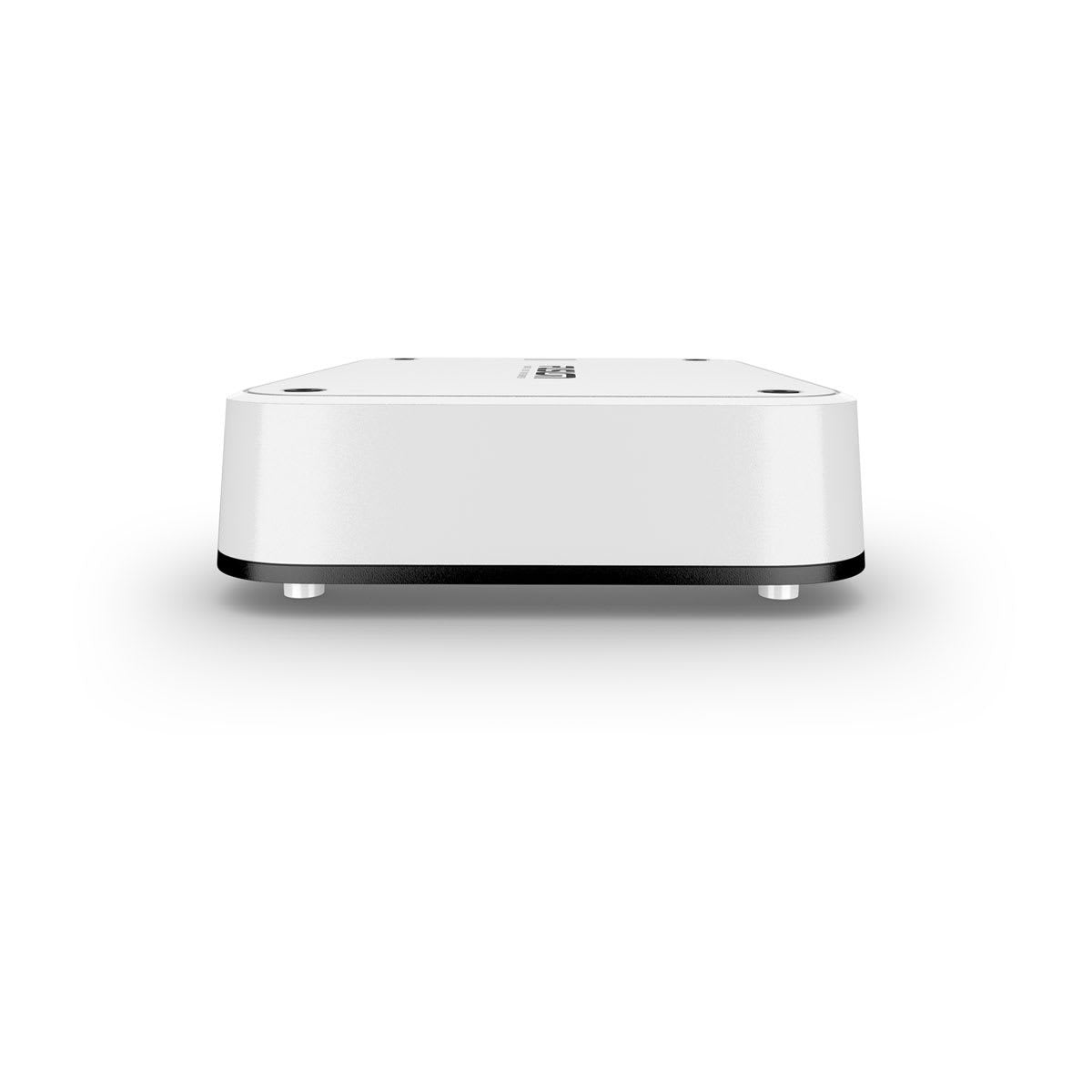

Fusion Apollo 4 Channel Marine Amplifier (150W RMS/ch)

The Fusion Apollo MS-AP41200 is a 4-channel Class-D marine amplifier rated at 150 W RMS per channel into 4 ohms (CEA-2006). It is the step up when the built-in amp in a compact stereo like the MS-RA60 is not enough for bigger speakers, a second zone, or a louder cockpit on a bay boat or center console.

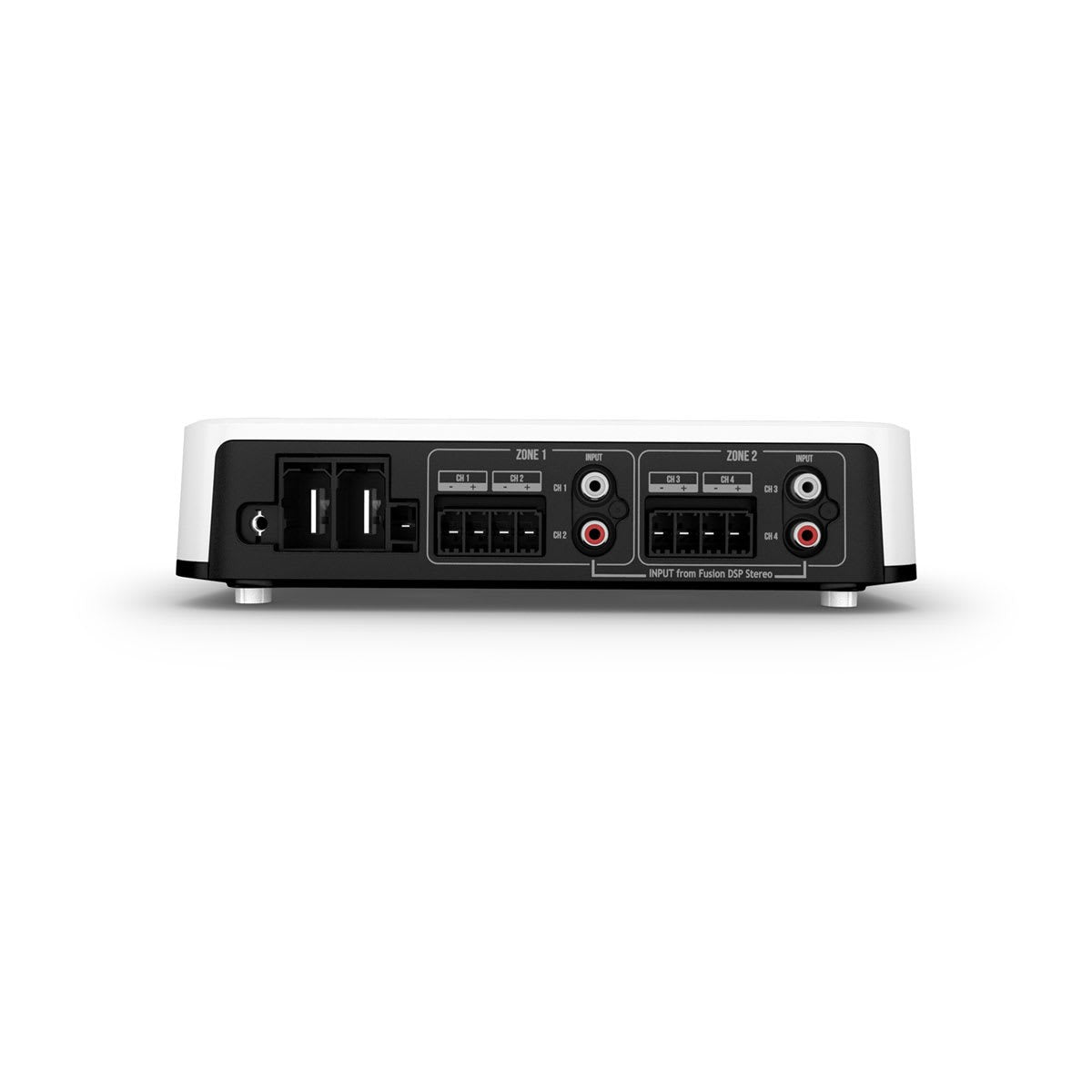

Soft-pairs with our Fusion MS-RA60 head unit and the MS-RA60 + EL Classic speaker kit. Use the stereo line outs into the Apollo RCA inputs, keep the AMPLIFIER ON wire tied in so the amp follows the head unit, then finish DSP setup in the Fusion-Link app. Pair with our XS Series 6.5" Classic speakers when you want more clean power to the cockpit.

Channels support a 4 ohm nominal load (2 ohm minimum). Bridged mode with the included high-power adapter is there for a sub or a high-power full-range speaker when you need it.

See it in action

What you get

• Fusion Apollo MS-AP41200 4-channel marine amplifier
• 150 W RMS per channel @ 4 ohm (CEA-2006)
• 290 W RMS per channel @ 2 ohm; 580 W RMS bridged @ 4 ohm
• Class-D design, 20 Hz to 20 kHz response
• IPX2 water rating when installed with connectors pointed down

Good to know

• RA60 partner: A clean add-on when you keep the MS-RA60 as the source and want more clean power to the speakers.
• Wire and fuse: Plan on heavy marine power/ground and a 40 A fuse or breaker. Speaker wire gauge depends on run length and load.
• DSP: After install, select the correct Apollo DSP profile in Fusion-Link so the amp and speakers match.

Specs

• Model: MS-AP41200
• Channels: 4
• Peak power output: 1200 W
• Weight: about 4 lb 13.6 oz (2.2 kg)
• Operating voltage: 10.8 to 16 Vdc
• Fusion / Garmin part number: 010-02284-45
• UPC: 753759329617

In the box

• Apollo 4-channel amplifier
• High-power adapter for bridged connections
• Mounting hardware
• Documentation
