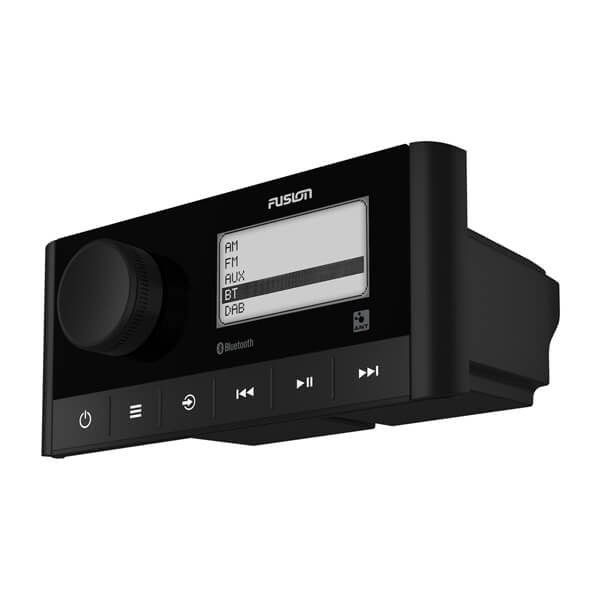

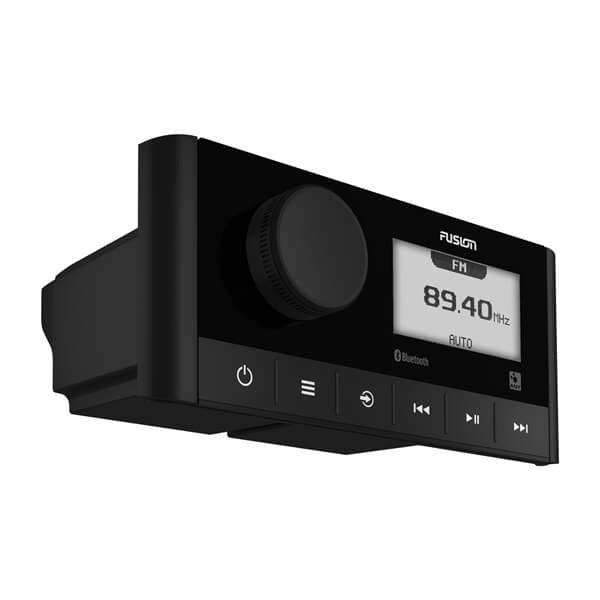

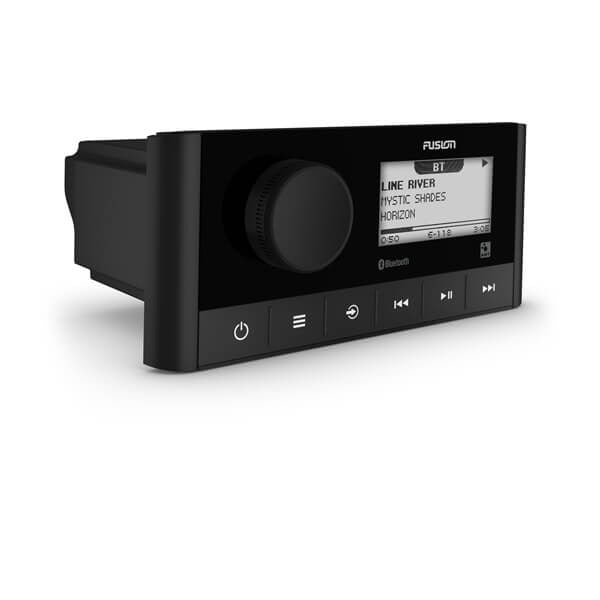

Fusion MS-RA60 Marine Head Unit

The Fusion MS-RA60 is a compact marine head unit for boats that need Bluetooth streaming, AM/FM, and simple two-zone control without a huge dash stereo. Multi-Zone technology supports two amplified speaker zones, and the built-in Class-D amp is rated at 22 watts RMS x 4 into 4 ohms (180 W peak).

Control music from the faceplate, a compatible Garmin chartplotter, a phone through the Garmin Audio / Fusion app path, or a compatible Garmin watch. ANT and Bluetooth wireless keep remotes and phones in the mix. Over-the-air software updates ride through the Garmin Audio app. Front panel is IPX6/IPX7 rated when installed correctly.

This listing is the head unit only (part 010-02405-00). If you want speakers in the same box, grab the MS-RA60 + EL Classic speaker kit. Either way, plan on an AM/FM antenna and speaker wire if those are not already on the boat. Want more power later? Step up with the Apollo 4-channel amp and XS Series 6.5" speakers.

See it in action

What you get

• Fusion MS-RA60 marine stereo (2.3" monochrome display)
• Class-D amplifier, 22 W RMS x 4 @ 4 ohm
• Multi-Zone: 2 amplified zones
• Sources: AM/FM, Bluetooth, AUX
• Garmin chartplotter / smart device / watch audio control
• IPX6 and IPX7 front panel (properly installed)

Good to know

• No speakers in this SKU: Head unit only. See the EL Classic kit if you want a matched pair of 6.5" speakers.
• Zones: Two amplified zones on the stereo. Line/sub outs need external amplification for a third zone/sub path.
• SiriusXM: Not SiriusXM-Ready on the RA60. Keep expectations honest.

Specs

• Size: 6.18" x 2.68" x 4.06" (156 x 68 x 103.2 mm)
• Weight: about 0.7 lb (316 g)
• Power input: 10.8 to 16 VDC
• Peak power: 180 W
• Bluetooth range: up to about 30 ft · ANT: up to about 10 ft
• Fusion / Garmin part number: 010-02405-00
• UPC: 753759250300

In the box

• MS-RA60 marine stereo
• Mounting gasket
• Mounting screws and screw covers
• Power and speaker wiring harness
• Aux / line-out / sub-out harnesses
• Documentation
