Garmin ECHOMAP UHD2 74cv with GT20-TM and US Coastal Charts

The Garmin ECHOMAP UHD2 74cv is the 7-inch keyed coastal chartplotter in the UHD2 family. This part includes the GT20-TM transducer and Garmin Navionics+ U.S. Coastal and Great Lakes mapping, so you get traditional CHIRP sonar, ClearVü, and usable coastal charts without stacking extra accessories.

The larger screen helps when you split chart and sonar or when a buddy is looking over your shoulder. Physical keys stay easy to hit with wet hands. Wi-Fi connects to ActiveCaptain for updates, Quickdraw Community, and phone-side management. Auto Guidance+ is available to download through the app.

Pick this 74cv when you want a 7-inch coastal plotter without paying for SideVü or Ultra High-Definition scanning. If you need SideVü and UHD ClearVü/SideVü with a GT54UHD transducer, look at the 74sv bundle. For a bigger console, the 94sv is the 9-inch sibling.

See it in action

What you get

• 7" keyed display (800 x 480), bail or flush mount
• Preloaded Garmin Navionics+ U.S. Coastal and Great Lakes charts

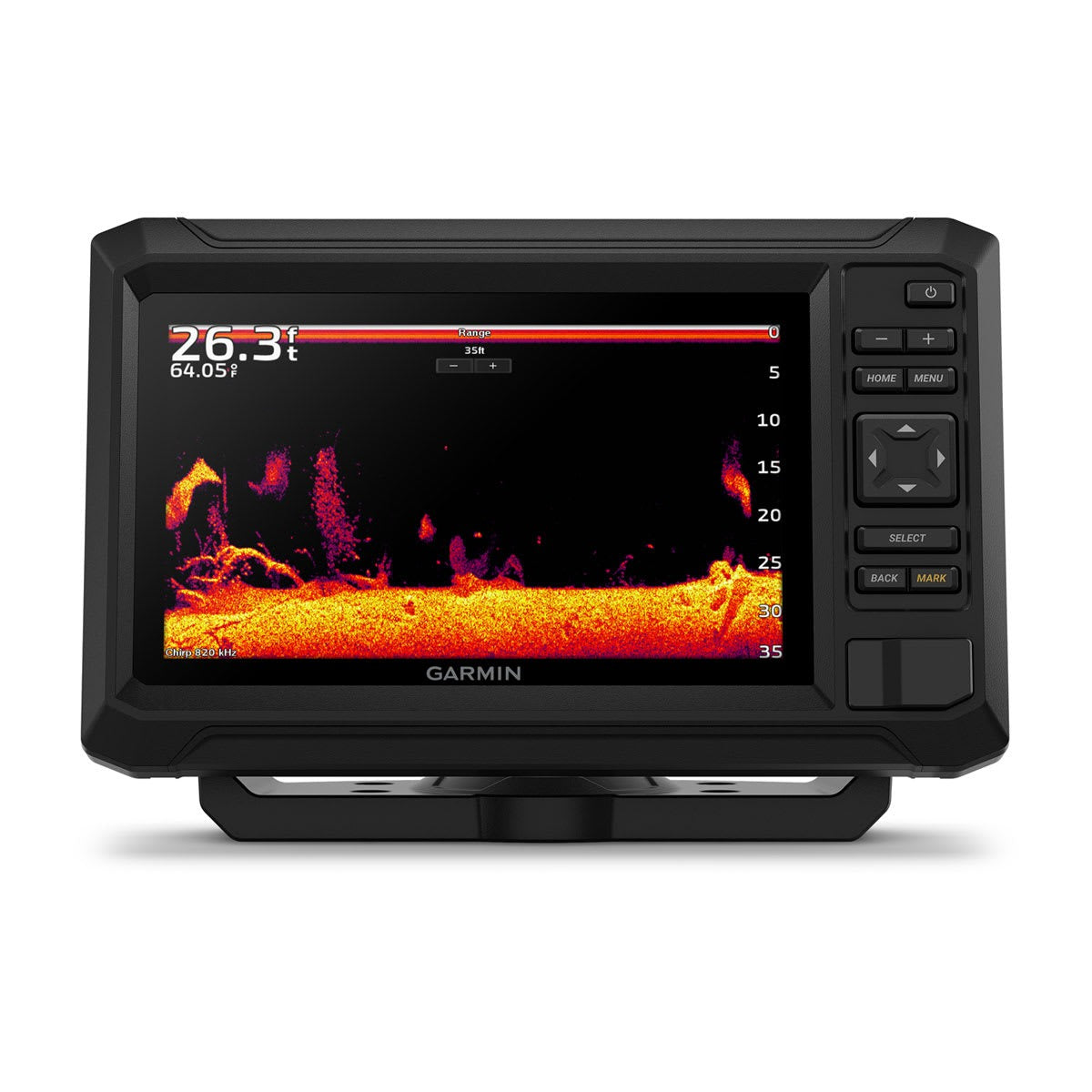

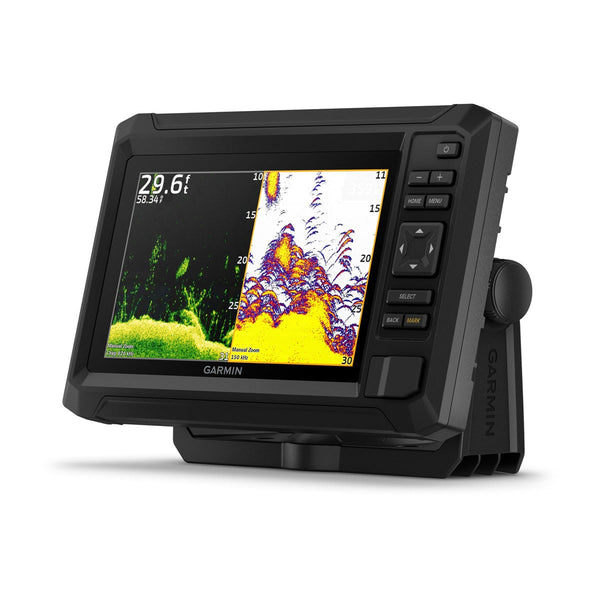

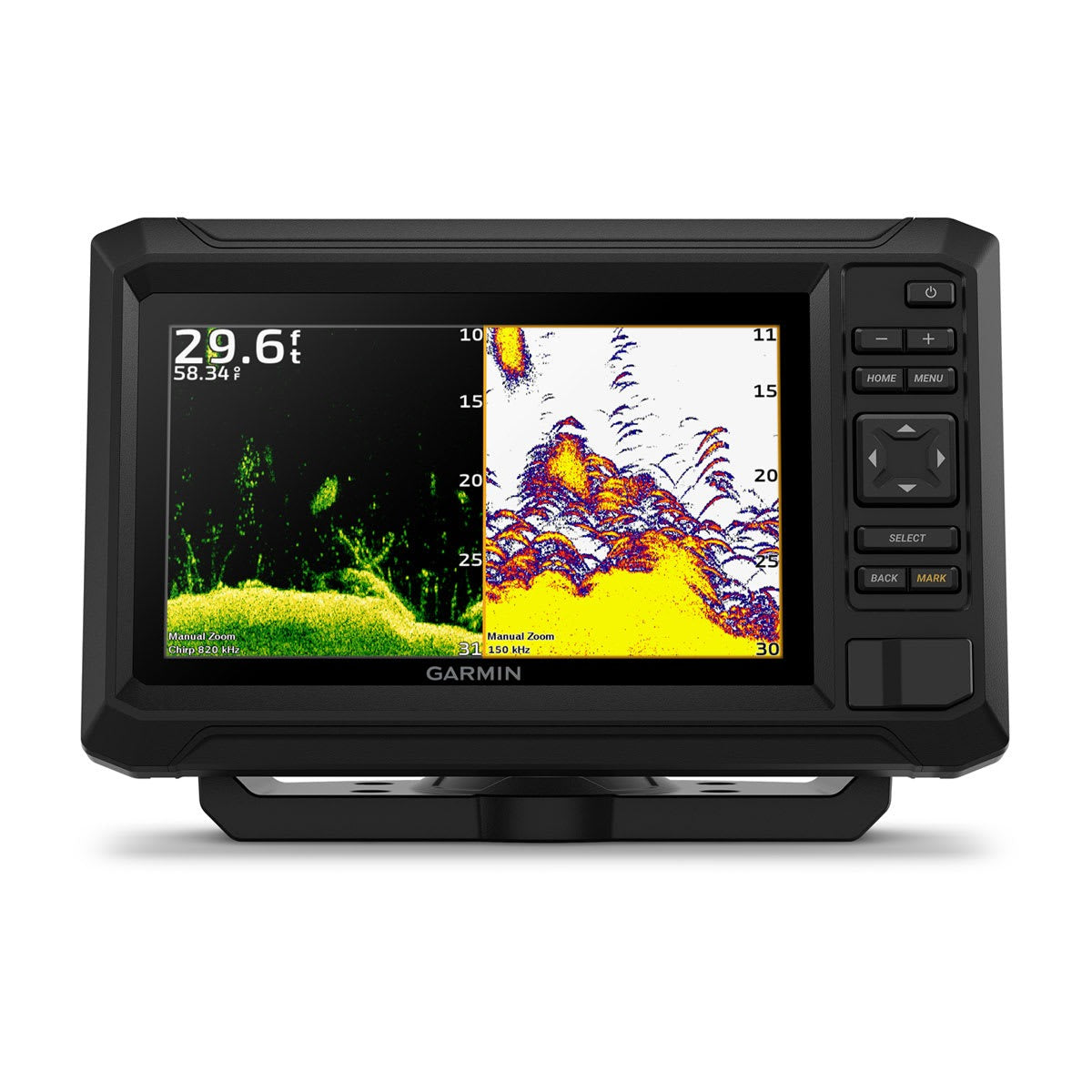

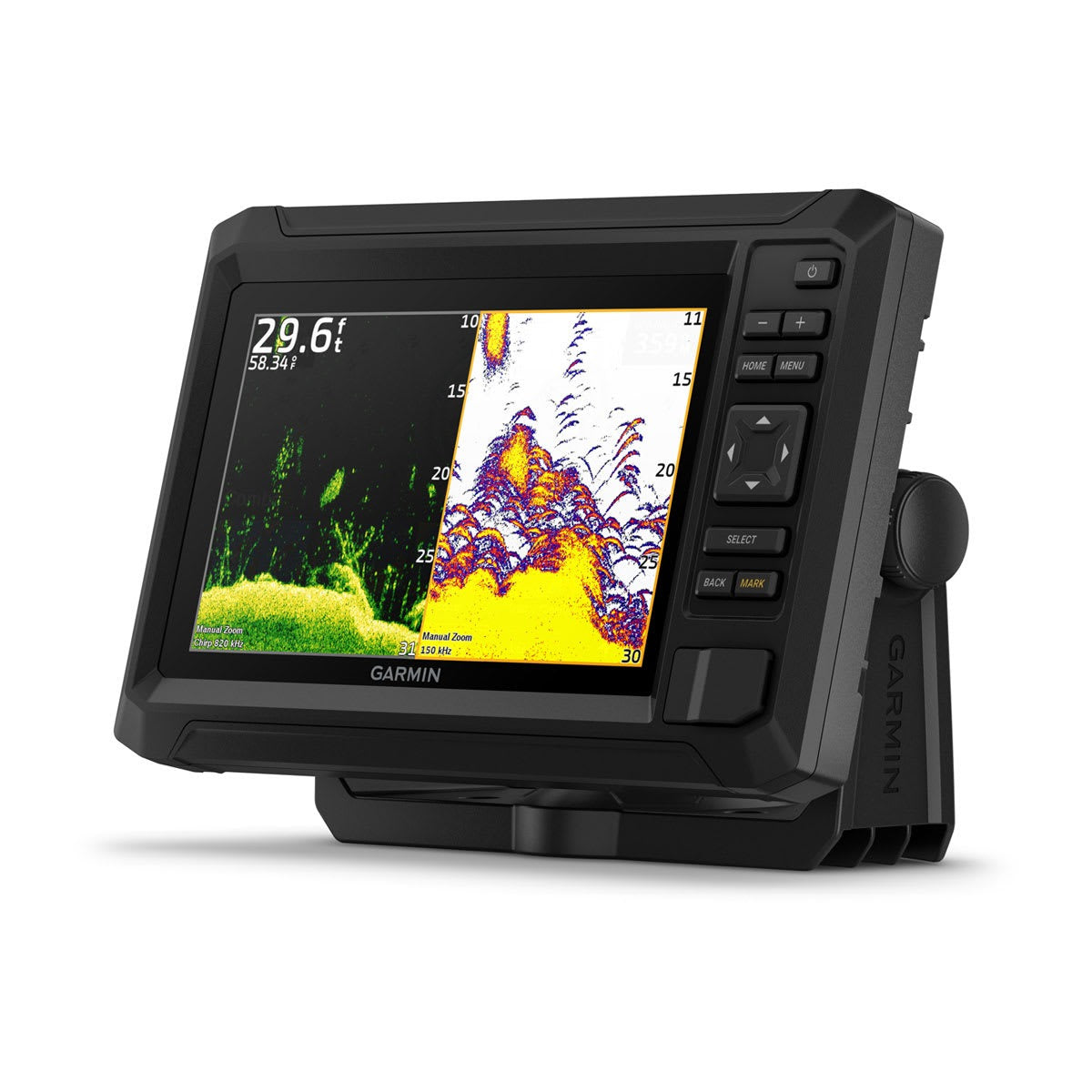

• GT20-TM transducer for CHIRP traditional + ClearVü
• 500 W sonar transmit power
• Wi-Fi for ActiveCaptain; Quickdraw Contours support
• IPX7 water rating

Good to know

• cv vs sv: ClearVü only on this 74cv. No SideVü.
• Display: Keyed WVGA TN panel. Not the touchscreen UHD2 sv models.
• Coastal maps: This SKU ships with U.S. Coastal + Great Lakes Navionics+ content.

Specs

• Display: 7" class WVGA TN, 800 x 480
• Unit size: 9.1" x 5.6" x 2.6" (23.2 x 14.3 x 6.7 cm)
• Weight: about 1.5 lb (0.7 kg)
• GPS/Galileo receiver: 5 Hz
• Waypoints: 5,000 · Tracks: 50 · Routes: 100
• microSD: 1 slot, up to 32 GB
• Power: 9 to 18 Vdc

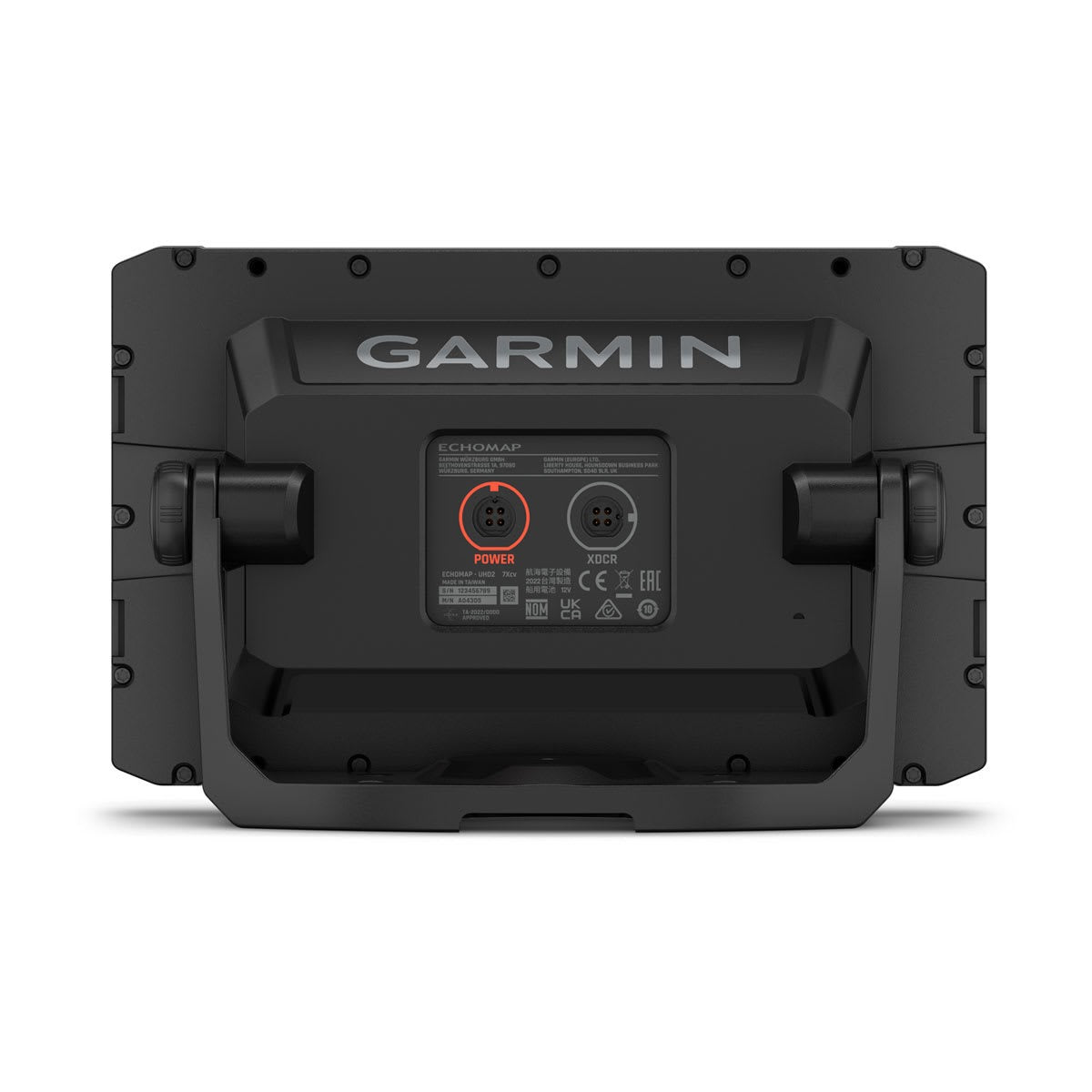

• Transducer port: 1 x 4-pin
• Included transducer: GT20-TM
• Garmin part number: 010-02595-51
• UPC: 753759307097

In the box

• ECHOMAP UHD2 74cv chartplotter
• GT20-TM transducer
• Garmin Navionics+ U.S. Coastal and Great Lakes mapping (preloaded)
• Power cable

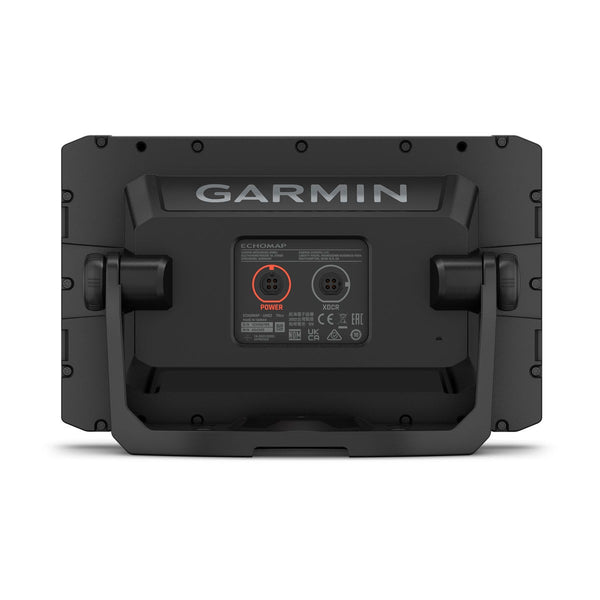

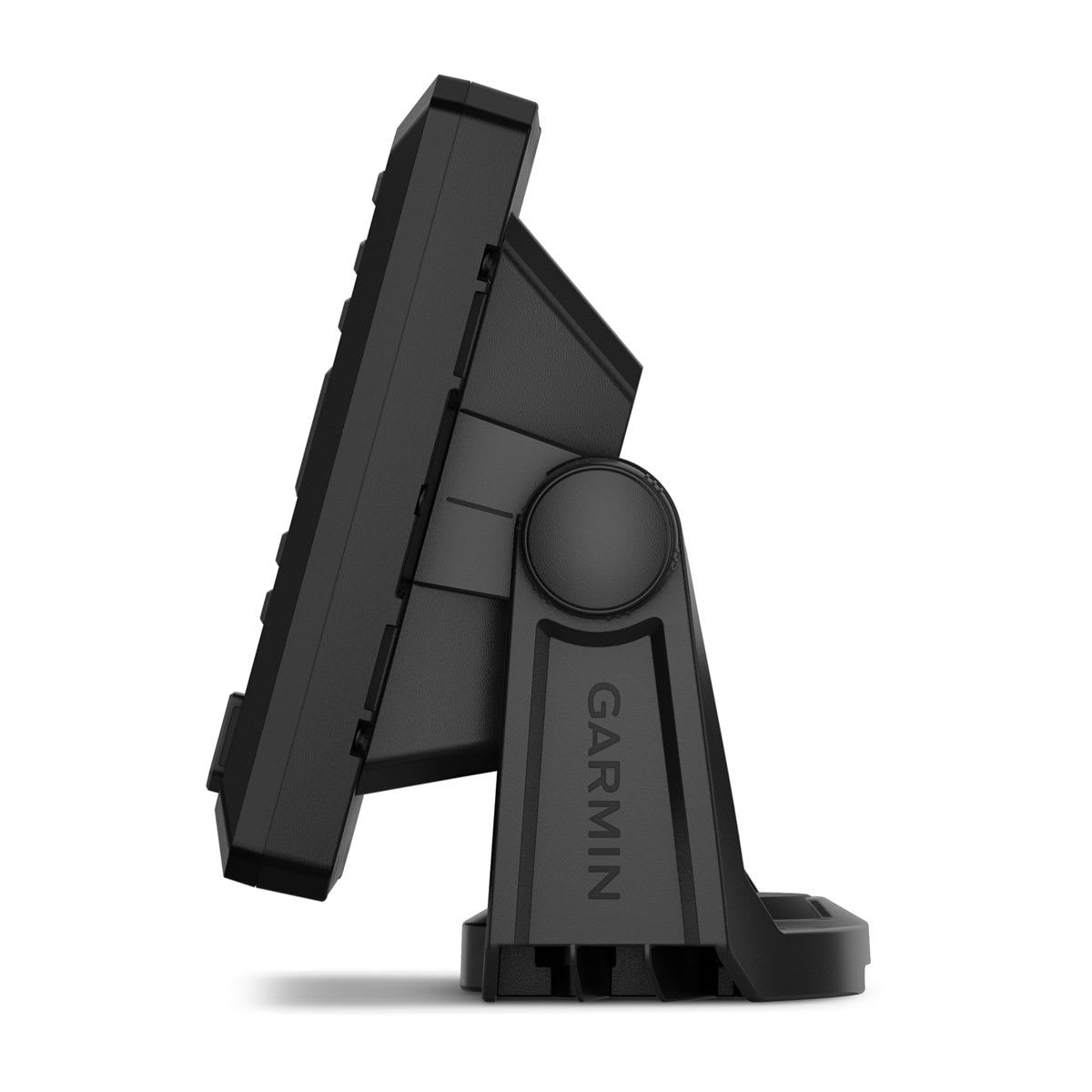

• Tilt/bail mount and flush mount kit
• Hardware and documentation
