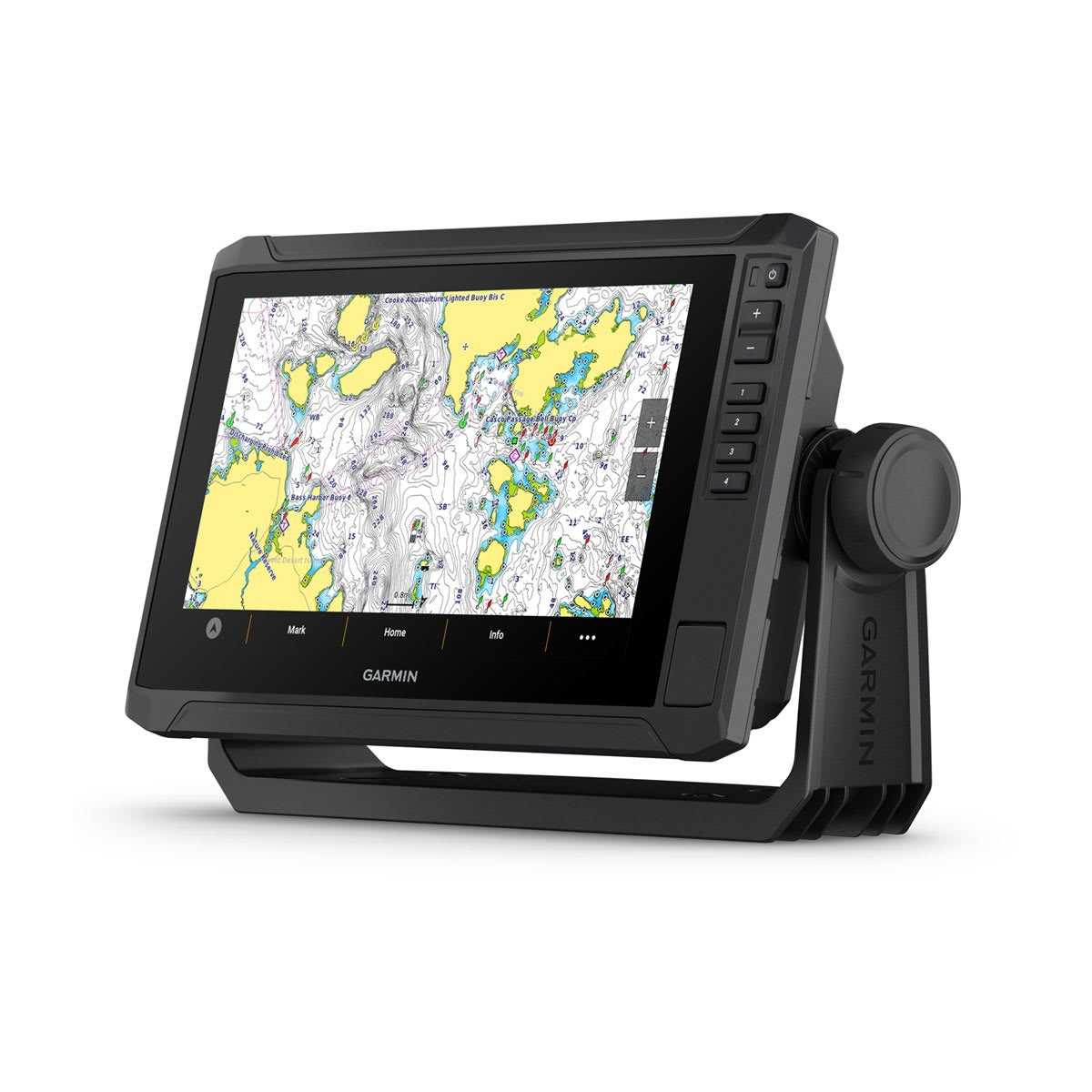

Garmin ECHOMAP UHD2 94sv with GT56UHD-TM and US Coastal Charts

The Garmin ECHOMAP UHD2 94sv is the 9-inch coastal chartplotter in this Wave 1 family. It ships with a GT56UHD-TM transducer and Garmin Navionics+ U.S. Coastal and Great Lakes mapping, so you get Ultra High-Definition ClearVü and SideVü plus traditional CHIRP on a bigger console-friendly screen.

Resolution steps up to 1024 x 600. Touchscreen with keyed assist, 10 Hz multi-band GNSS, NMEA 2000, and Garmin Marine Network match the 74sv feature set with more glass for split views and shared helm visibility. ActiveCaptain, Quickdraw, and downloadable Auto Guidance+ cover the phone and mapping workflows anglers actually use.

Buy the 94sv when the helm has room for 9 inches and you want UHD side and down imaging without jumping to a full GPSMAP MFD. The 74sv is the same idea in 7 inches. The keyed 54cv and 74cv stay ClearVü-only options at lower price points.

See it in action

What you get

• 9" touchscreen with keyed assist (1024 x 600)

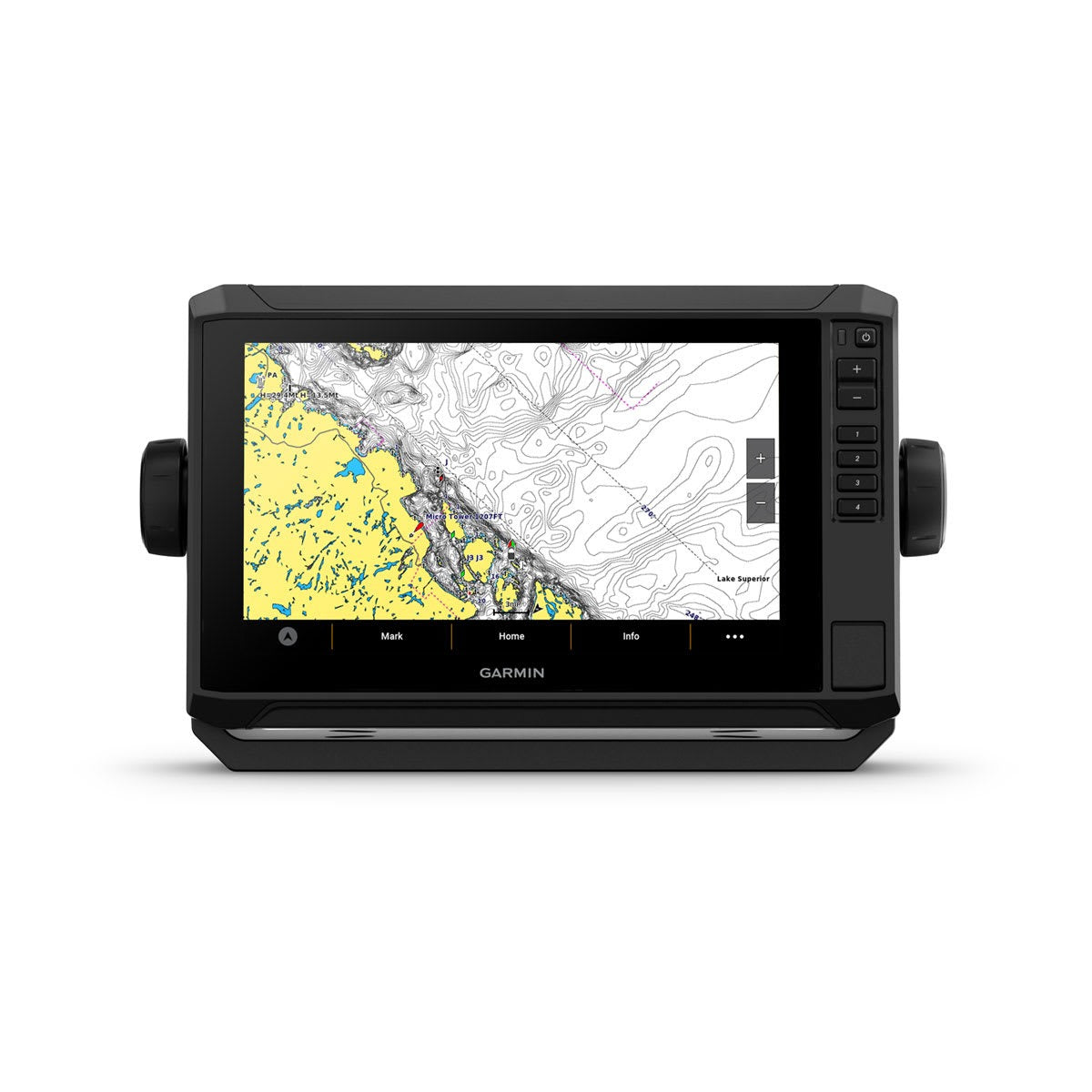

• Preloaded Garmin Navionics+ U.S. Coastal and Great Lakes charts

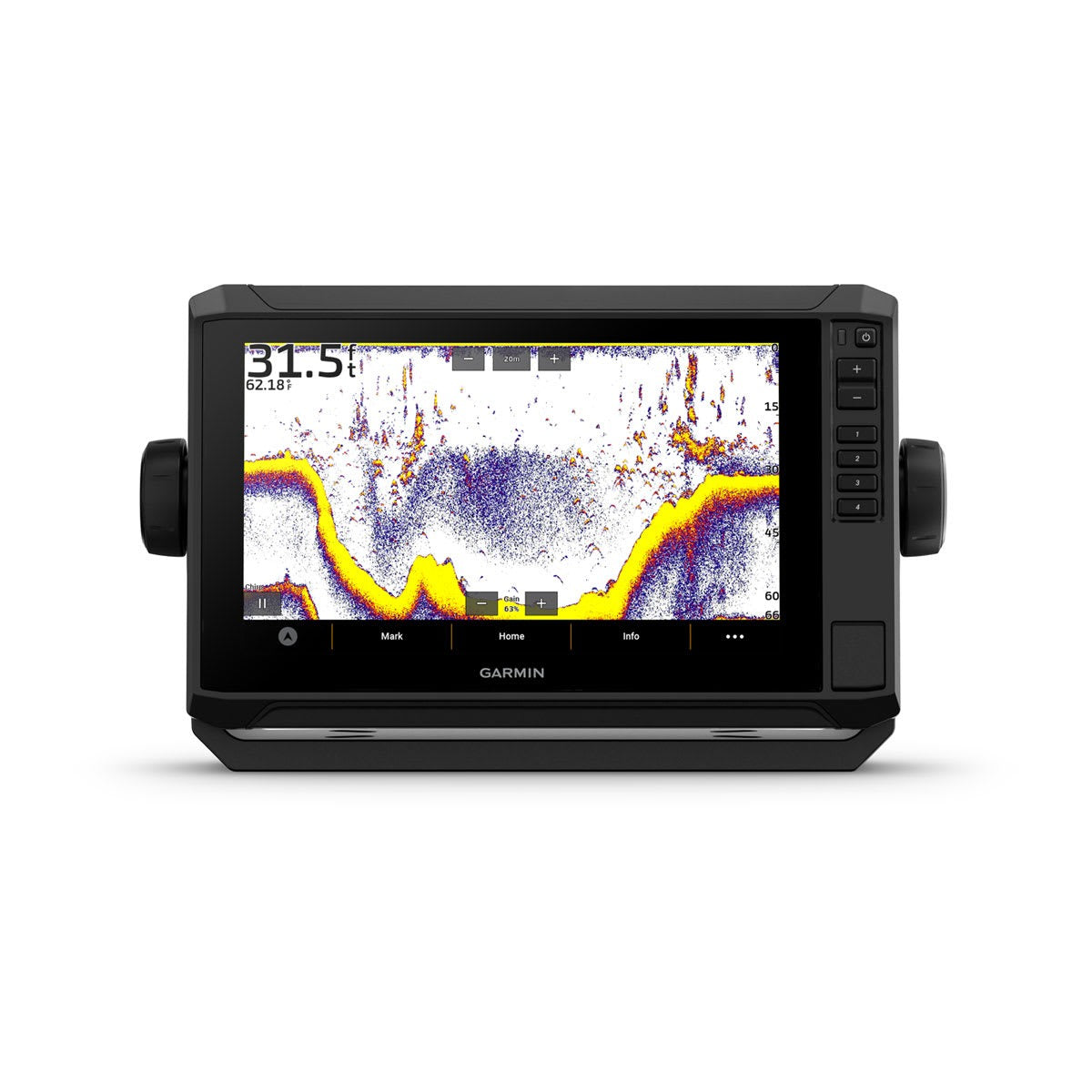

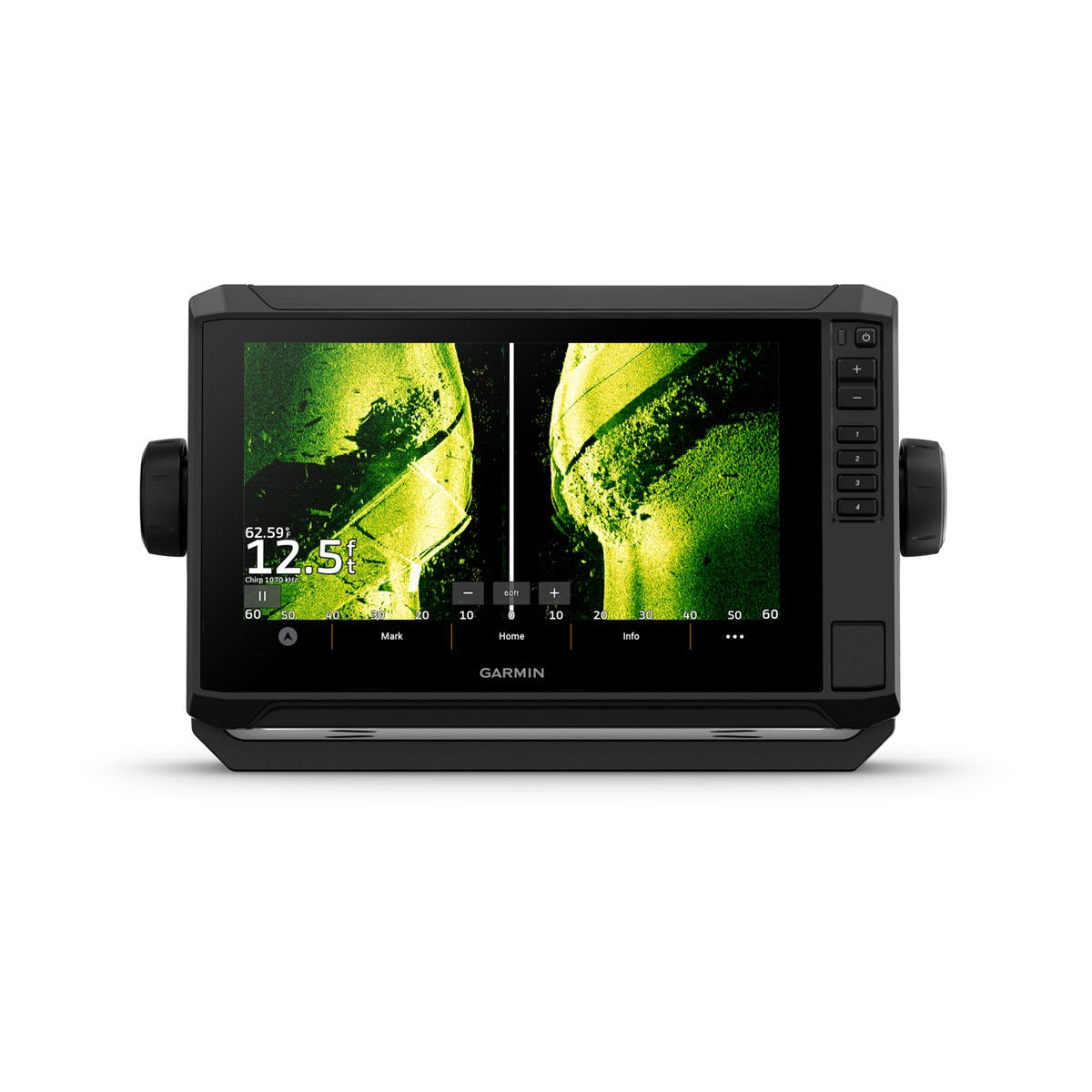

• GT56UHD-TM transducer for UHD ClearVü and SideVü plus traditional CHIRP
• 500 W sonar transmit power
• NMEA 2000 and Garmin Marine Network connectivity
• Wi-Fi, Bluetooth, and ActiveCaptain support
• IPX7 water rating

Good to know

• GT56UHD: Higher-end UHD scanning transducer versus GT54UHD on the 74sv and GT20 on the cv kits.

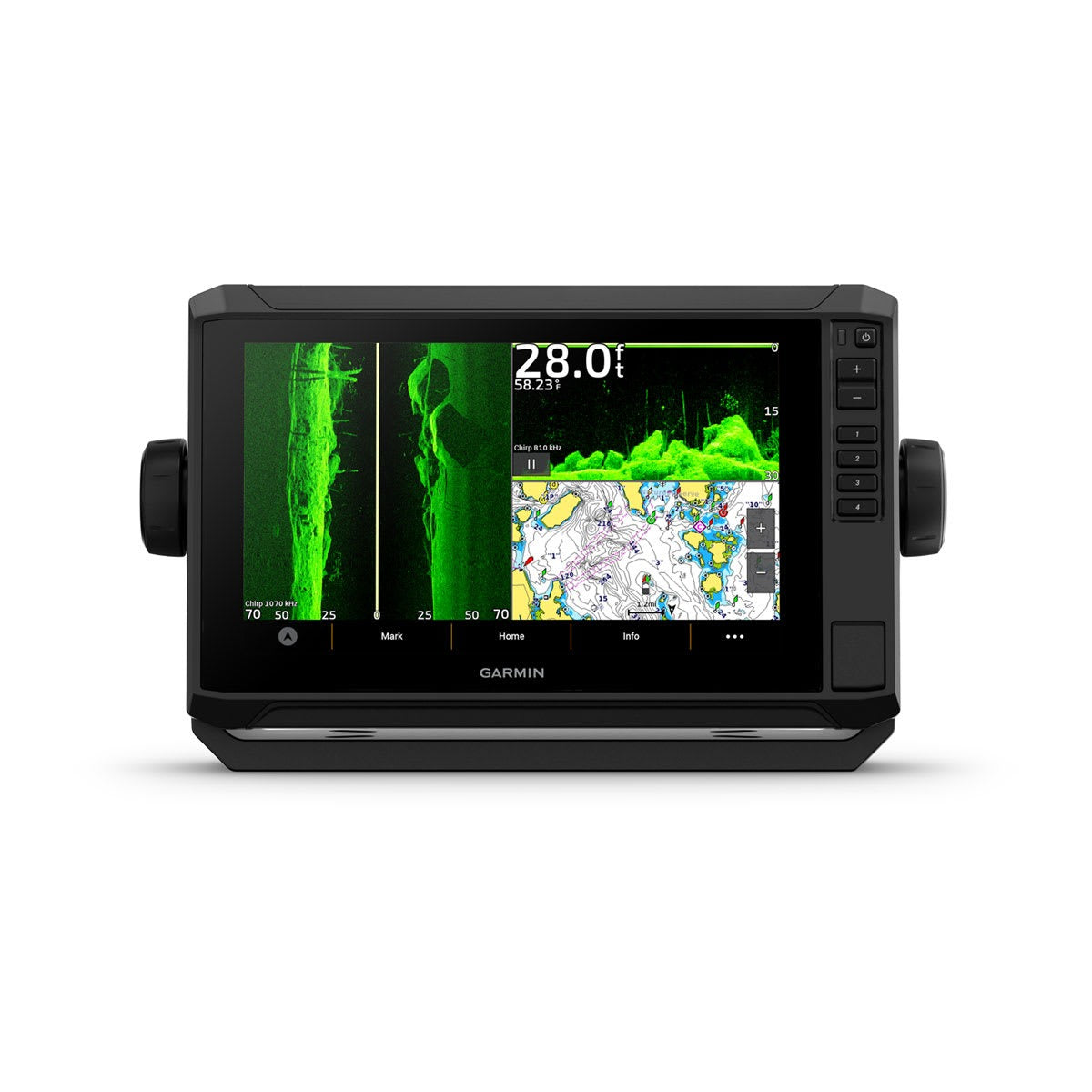

• Screen: 9-inch WSVGA helps with chart/sonar splits on bigger center consoles.

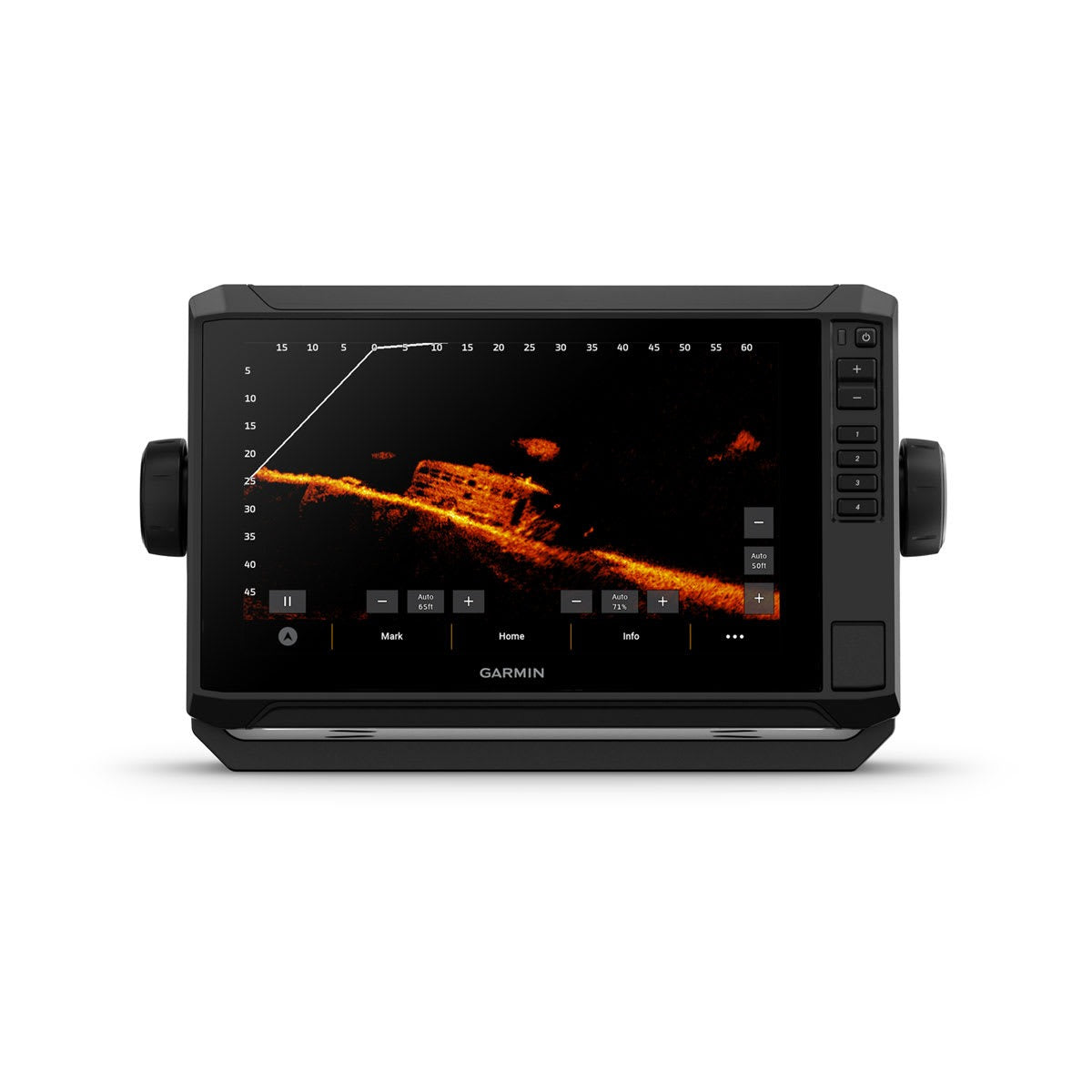

• LiveScope ready: Add a LiveScope system later if you want live forward/scanning sonar.

Specs

• Display: 9" WSVGA TN touchscreen with keyed assist, 1024 x 600
• Unit size: 10.4" x 6.5" x 3.2" (26.4 x 16.6 x 8.0 cm)
• Weight: about 2.9 lb (1.3 kg)
• GNSS: multi-band GPS/GLONASS/Galileo/BeiDou, 10 Hz
• Waypoints: 5,000 · Tracks: 50 · Routes: 100
• microSD: 1 slot, up to 32 GB
• Power: 9 to 18 Vdc
• Transducer port: 1 x 12-pin
• Included transducer: GT56UHD-TM
• Garmin part number: 010-02689-01
• UPC: 753759308001

In the box

• ECHOMAP UHD2 94sv chartplotter
• GT56UHD-TM transducer
• Garmin Navionics+ U.S. Coastal and Great Lakes mapping (preloaded)
• Power cable
• Bail mount and flush mount hardware
• Documentation
