Garmin ECHOMAP UHD2 74sv with GT54UHD-TM and US Coastal Charts

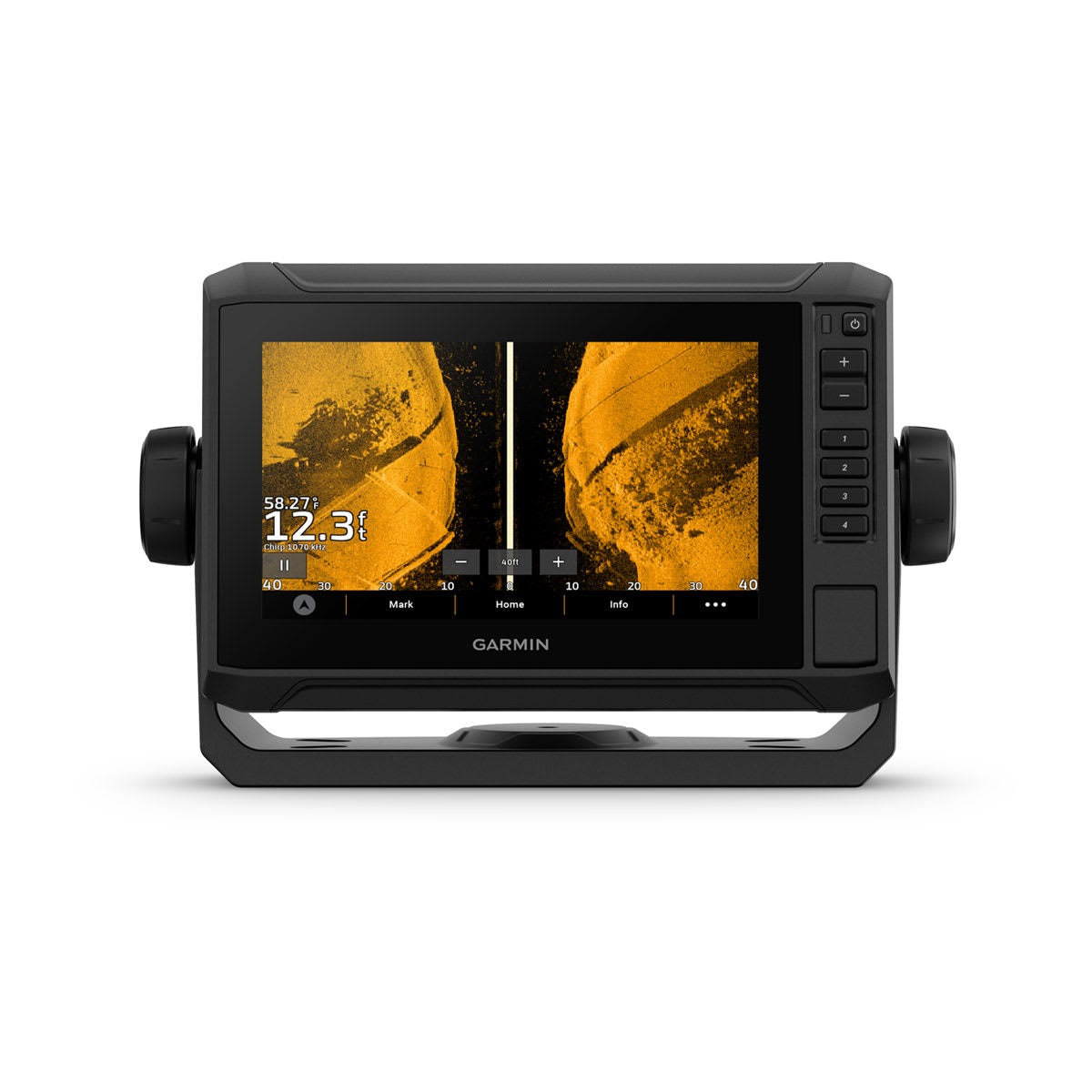

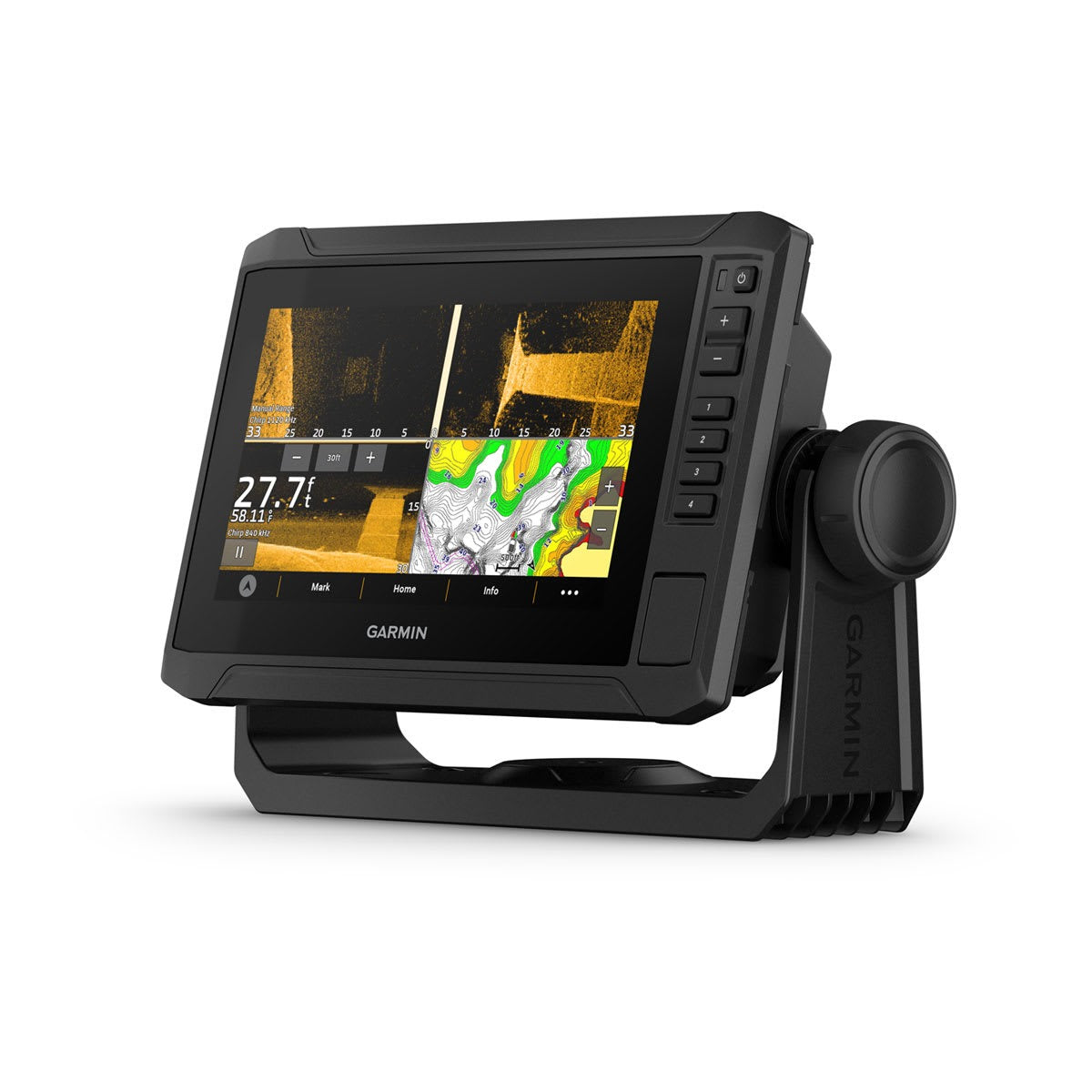

The Garmin ECHOMAP UHD2 74sv is the 7-inch touchscreen coastal chartplotter with Ultra High-Definition ClearVü and SideVü. This bundle pairs the display with a GT54UHD-TM transducer and preloaded Garmin Navionics+ U.S. Coastal and Great Lakes mapping.

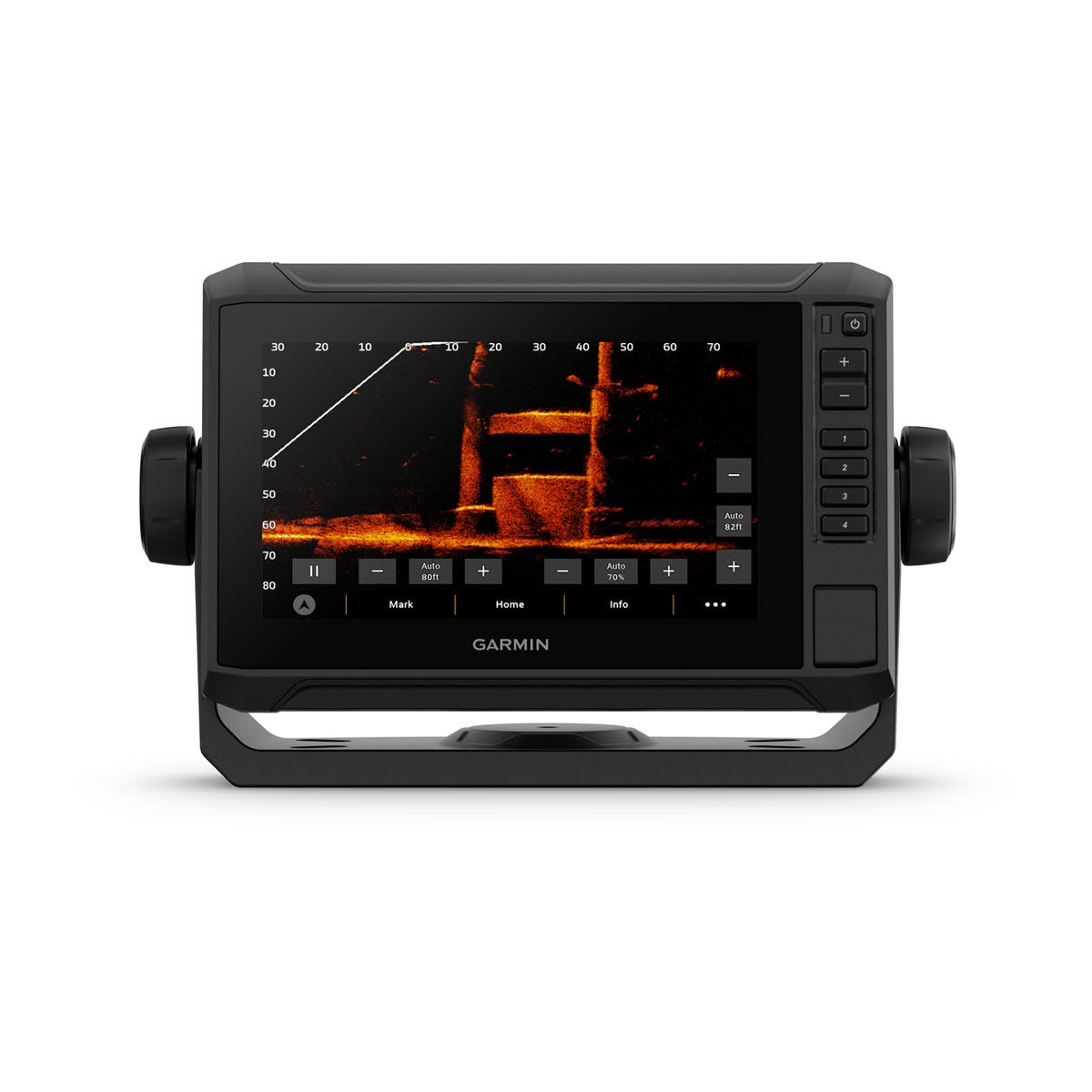

Touchscreen with keyed assist gives you pinch-zoom on charts and hard buttons when the water is rough. A 10 Hz multi-band GNSS receiver, NMEA 2000 support, and a Garmin Marine Network port make this unit more of a networked hub than the keyed cv models. It also supports LiveScope and Panoptix when you add compatible transducers later.

Choose the 74sv when you want SideVü and UHD scanning on a mid-size console. The 74cv is the lower-cost ClearVü-only keyed option. The 94sv brings the same UHD sv feature set on a 9-inch screen with the GT56UHD transducer.

See it in action

What you get

• 7" touchscreen with keyed assist (800 x 480)
• Preloaded Garmin Navionics+ U.S. Coastal and Great Lakes charts

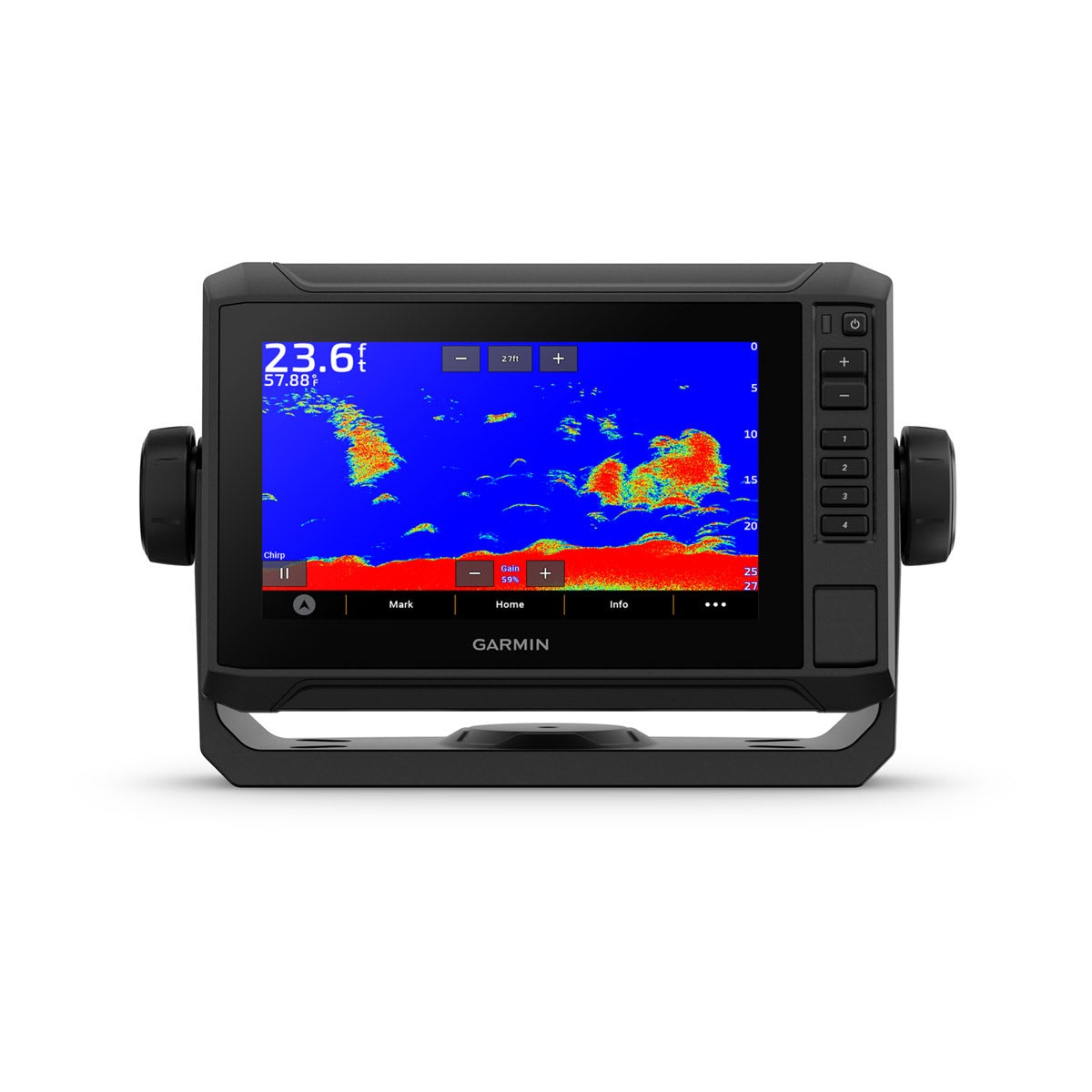

• GT54UHD-TM transducer for UHD ClearVü and SideVü plus traditional CHIRP
• 500 W sonar transmit power
• NMEA 2000 and Garmin Marine Network connectivity
• Wi-Fi, Bluetooth, and ActiveCaptain support
• IPX7 water rating

Good to know

• UHD scanning: GT54UHD is built for Ultra High-Definition ClearVü/SideVü detail versus the GT20 ClearVü-only kits.
• Networking: NMEA 2000 and Marine Network open the door to autopilots, radios, and shared sonar later.
• LiveScope: Compatible when you add a LiveScope system. Not included in this box.

Specs

• Display: 7" WVGA TN touchscreen with keyed assist, 800 x 480
• Unit size: 8.6" x 5.6" x 3.2" (21.8 x 14.2 x 8.1 cm)
• Weight: about 2.2 lb (1.0 kg)
• GNSS: multi-band GPS/GLONASS/Galileo/BeiDou, 10 Hz
• Waypoints: 5,000 · Tracks: 50 · Routes: 100
• microSD: 1 slot, up to 32 GB
• Power: 9 to 18 Vdc

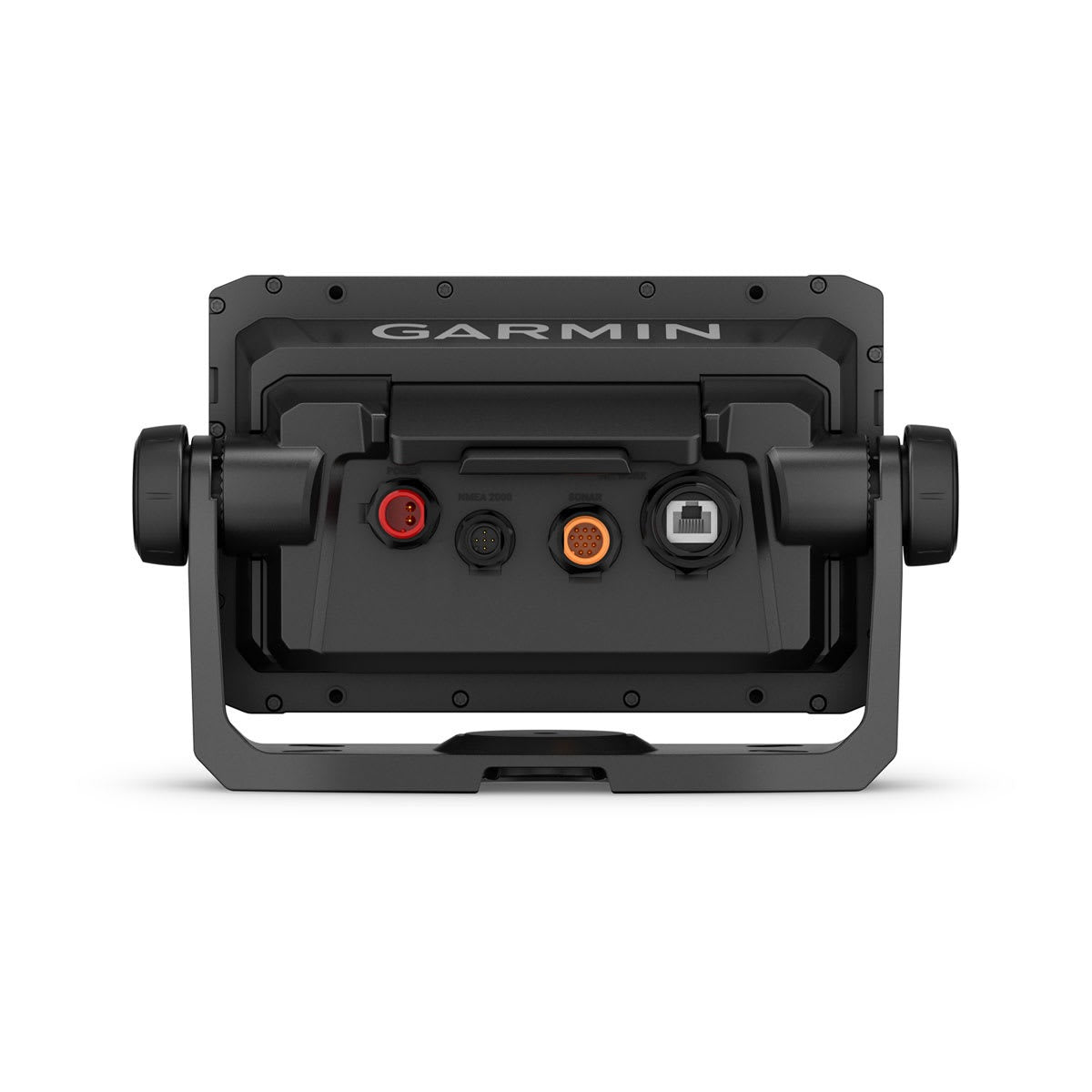

• Transducer port: 1 x 12-pin
• Included transducer: GT54UHD-TM
• Garmin part number: 010-02685-01
• UPC: 753759307912

In the box

• ECHOMAP UHD2 74sv chartplotter
• GT54UHD-TM transducer
• Garmin Navionics+ U.S. Coastal and Great Lakes mapping (preloaded)
• Power cable

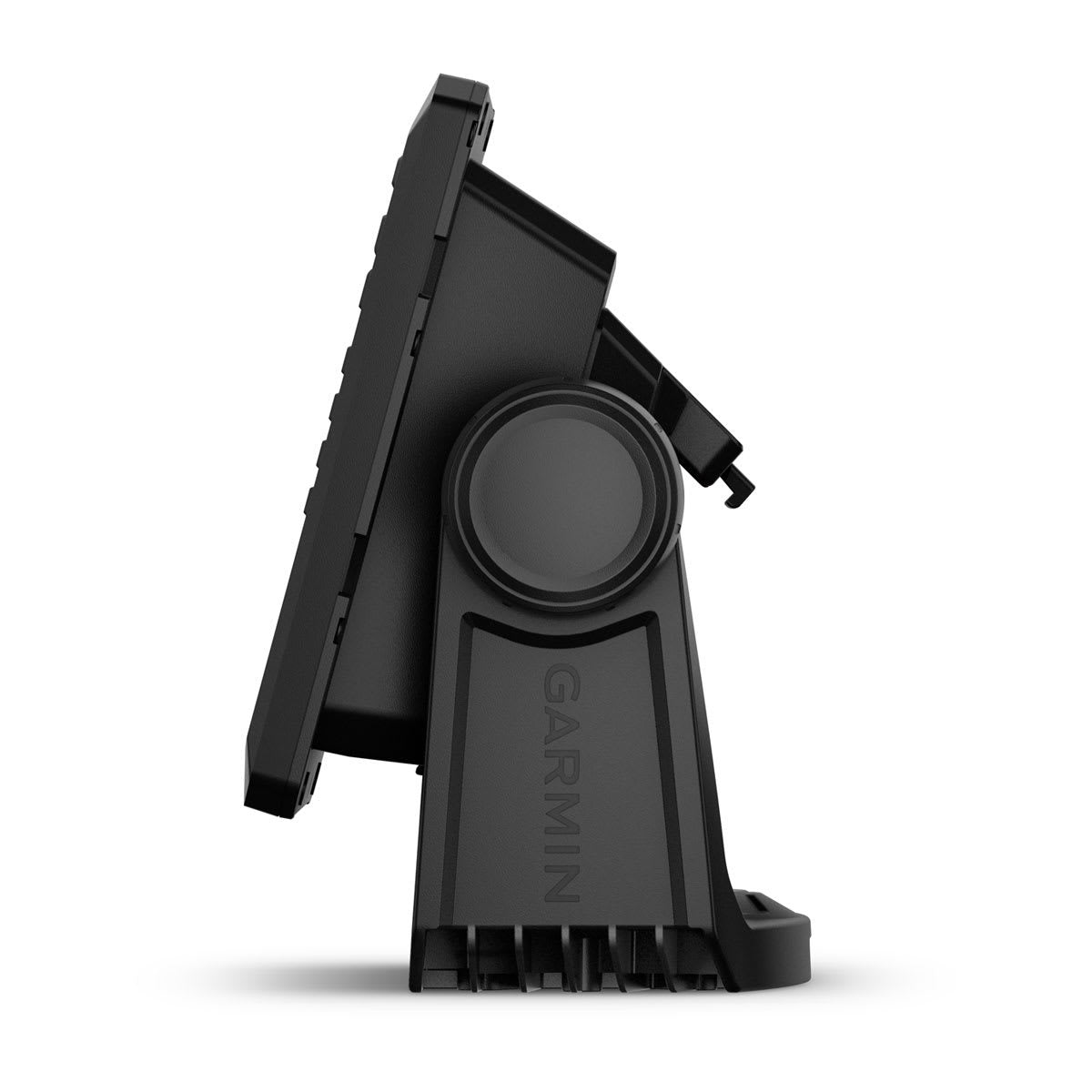

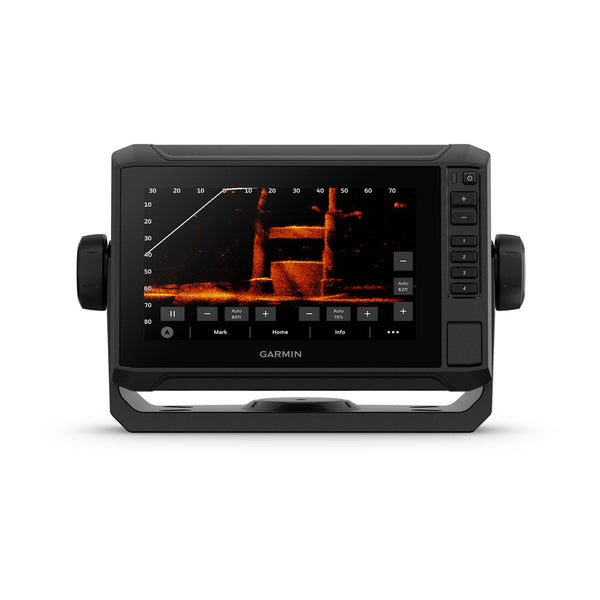

• Bail mount and flush mount hardware
• Documentation
