Garmin LiveScope System (Thru-Hull)

The Garmin LiveScope System (part 010-02233-00) is the thru-hull LVS32 live-scanning sonar package with the GLS 10 black box. It paints a live picture of fish, bait, and structure ahead of or below the boat so you can watch how targets move instead of waiting on a historical scroll.

This system pairs with compatible Garmin chartplotters, including our ECHOMAP UHD2 coastal units. If you already run an ECHOMAP UHD2 74sv or 94sv, LiveScope is the usual next step when you want real-time views on the same glass. CV models and other Marine Network plotters that list LiveScope support can work too. Confirm transducer port and software before you buy.

Forward, Down, and Perspective modes cover different casts and boat positions. Rated range is up to about 200 ft. The thru-hull LVS32 mount is meant for boats that want a clean hull install rather than a trolling-motor or shaft mount.

See it in action

What you get

• LiveScope LVS32-TH thru-hull transducer
• GLS 10 sonar module (Garmin Marine Network output)
• Forward, Down, and Perspective live sonar modes on compatible MFDs
• About 200 ft max depth/distance rating
• 530 to 1,100 kHz operating frequencies

Good to know

• Needs a compatible plotter: LiveScope is not a standalone display. Plan on a Garmin chartplotter that supports LiveScope over the Marine Network.
• Thru-hull install: This SKU is the thru-hull transducer package. Fairing blocks and careful deadrise checks matter on Gulf and coastal hulls.
• Power: GLS 10 runs on 10 to 32 Vdc, about 21 W typical.

Specs

• Transducer size: 5.37" x 3.8" x 1.75" (136.4 x 96.5 x 44.5 mm)
• Transducer weight: about 1.87 lb (850 g)
• Field of view: 135° front-to-back, 20° side-to-side
• GLS 10 size: 9.7" x 5.9" x 2.6" (245 x 149 x 65 mm)
• GLS 10 weight: about 4.33 lb (1.96 kg)
• Garmin part number: 010-02233-00
• UPC: 753759225384

In the box

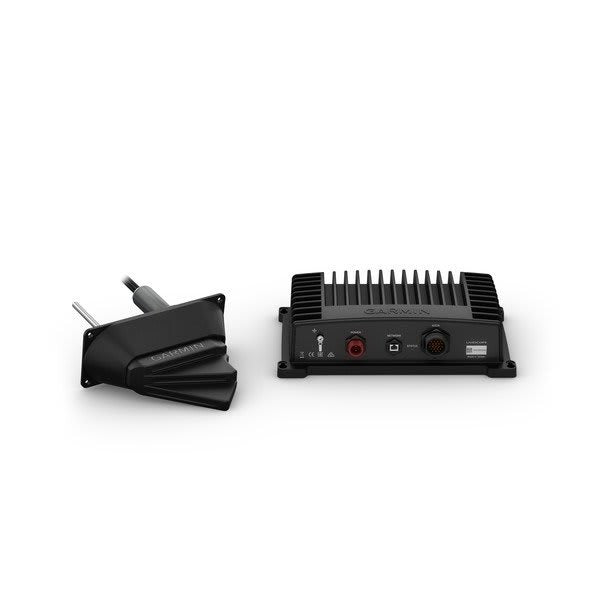

• LVS32-TH thru-hull transducer
• GLS 10 sonar black box
• Cables and mounting hardware for the thru-hull system
• Documentation
